ASTM A335 P5 Studded Fin Tubes
Product Overview
ASTM A335 P5 Studded Fin Tubes are engineered for demanding heat transfer applications involving elevated temperatures, aggressive flue gases, and severe thermal cycling conditions. Manufactured from ASTM A335 Grade P5 seamless ferritic alloy steel pipe, these tubes feature solid metal studs resistance-welded onto the external tube surface to increase heat transfer efficiency while maintaining excellent mechanical integrity.
The chromium-molybdenum alloy composition of P5 steel provides superior oxidation resistance, creep strength, and high-temperature performance compared to conventional carbon steel tubes. Studded fin tubes are widely utilized in refinery heaters, petrochemical furnaces, waste heat recovery boilers, thermal oil heaters, sulfur recovery units, and power generation facilities.
The studded design creates additional heat transfer surface area while allowing easier cleaning and better fouling resistance than conventional finned tubes, making them particularly suitable for dirty gas streams and high-temperature environments.
Key Features
- Manufactured from ASTM A335 Grade P5 seamless alloy steel
- Excellent oxidation resistance at elevated temperatures
- Improved heat transfer efficiency through welded stud configuration
- Suitable for high-temperature flue gas service
- Outstanding resistance to thermal fatigue and thermal shock
- Robust welded construction for long service life
- Reduced fouling sensitivity compared with continuous fin designs
- Compatible with refractory-lined equipment
- Suitable for refinery, petrochemical, and power plant applications
Typical Applications
Refining Industry
- Crude oil heaters
- Vacuum heaters
- Catalytic reforming units
- Delayed coker heaters
Petrochemical Industry
- Ethylene furnaces
- Hydrogen production units
- Process gas heaters
- Sulfur recovery units
Power Generation
- Waste heat recovery boilers
- Economizers
- Heat recovery steam generators
- Biomass and waste-to-energy plants
Industrial Heating Systems
- Thermal fluid heaters
- Incineration systems
- High-temperature process heaters
- Industrial furnaces
Manufacturing Process
Studded fin tubes are produced by automatically resistance welding carbon or alloy steel studs onto the outside surface of the ASTM A335 P5 base tube. The welding process creates a strong metallurgical bond that ensures efficient heat transfer and long-term reliability under cyclic operating conditions.
After welding, the tubes undergo dimensional verification, weld integrity inspection, and material testing to ensure compliance with project specifications and international quality standards.
Typical Dimensions
The following dimensions represent common manufacturing capabilities. Custom sizes are available upon request.
| Parameter |
Typical Range |
| Base Tube OD |
25.4 mm – 219.1 mm (1" – 8") |
| Tube Wall Thickness |
3.2 mm – 16.0 mm |
| Tube Length |
Up to 18,000 mm |
| Stud Diameter |
6 mm – 20 mm |
| Stud Height |
10 mm – 35 mm |
| Stud Pitch |
10 mm – 40 mm |
| Stud Density |
Customized per thermal design |
| Surface Condition |
As Welded, Shot Blasted, Coated |
ASTM A335 P5 Chemical Composition
| Element |
Composition (%) |
| Carbon (C) |
Max 0.15 |
| Manganese (Mn) |
0.30 – 0.60 |
| Phosphorus (P) |
Max 0.025 |
| Sulfur (S) |
Max 0.025 |
| Silicon (Si) |
Max 0.50 |
| Chromium (Cr) |
4.00 – 6.00 |
| Molybdenum (Mo) |
0.45 – 0.65 |
Values conform to ASTM A335 requirements.
ASTM A335 P5 Mechanical Properties
| Property |
Minimum Value |
| Tensile Strength |
415 MPa (60 ksi) |
| Yield Strength |
205 MPa (30 ksi) |
| Elongation |
30% |
| Hardness |
According to ASTM specification |
| Heat Treatment |
Full Annealed or Isothermal Annealed |
Mechanical properties apply to ASTM A335 Grade P5 base material.
Inspection and Testing
To ensure product reliability and compliance, ASTM A335 P5 studded fin tubes may undergo the following inspections:
Raw Material Verification
- Material Test Certificate (MTC) review
- Positive Material Identification (PMI)
- Chemical composition analysis
Dimensional Inspection

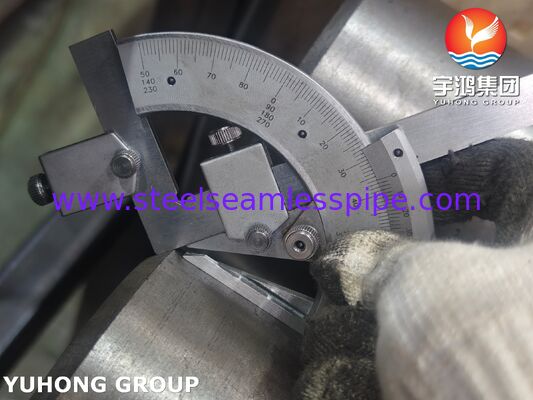

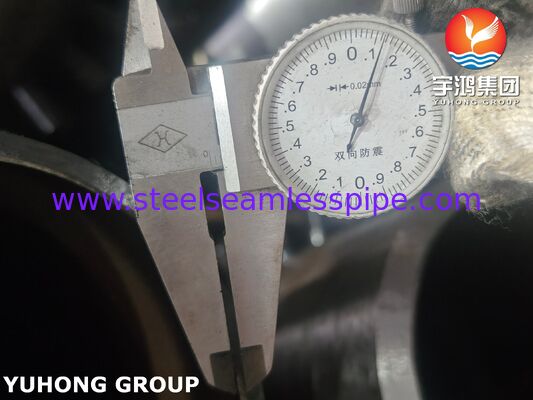

- Tube outside diameter verification
- Wall thickness measurement
- Tube length inspection

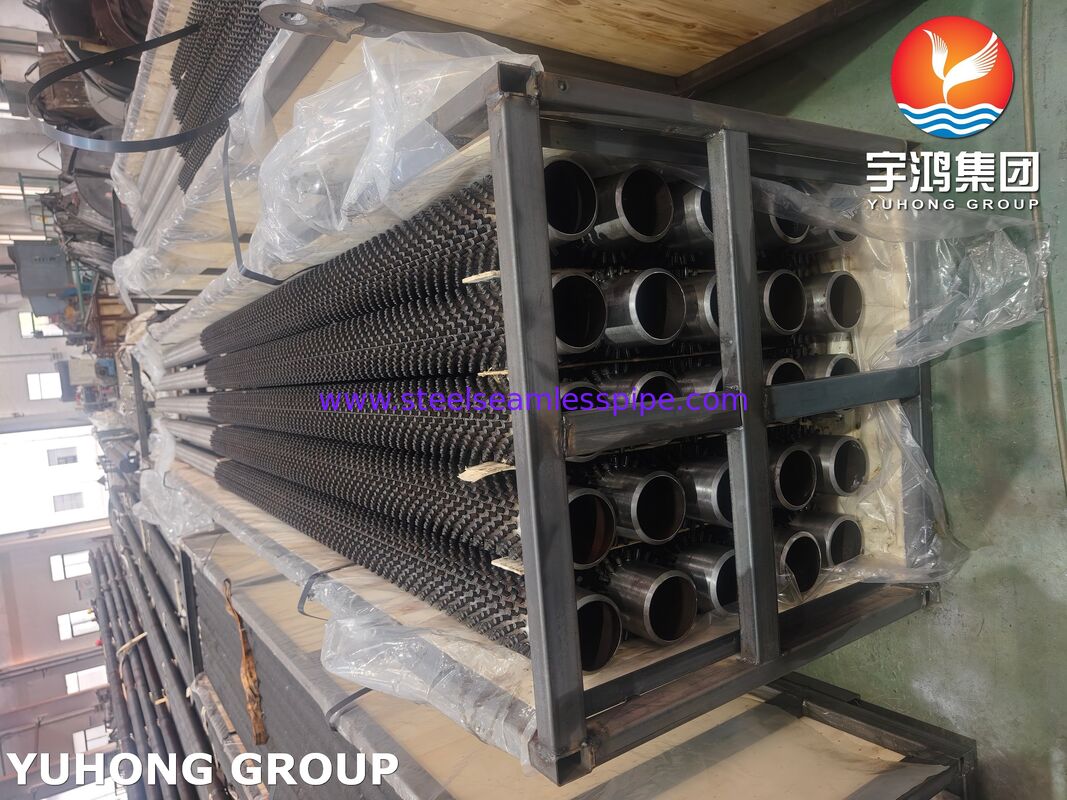

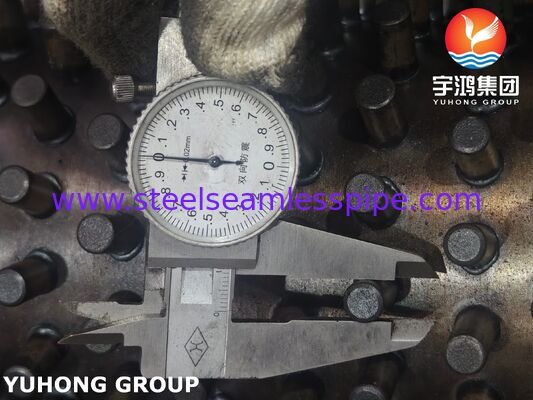

- Stud height and pitch measurement
- Straightness inspection
Mechanical Testing
- Tensile testing
- Hardness testing
- Flattening test
- Bend test (when specified)
Non-Destructive Examination (NDE)
- Visual inspection
- Ultrasonic testing (UT)
- Eddy current testing (ECT)
- Magnetic particle testing (MT)
- Dye penetrant testing (PT) for stud welds
Weld Quality Inspection
- Stud weld integrity examination
- Weld fusion verification
- Random destructive weld testing
Pressure Testing
- Hydrostatic testing
- Pneumatic testing (upon request)
Advantages of ASTM A335 P5 Studded Fin Tubes
High Temperature Performance
The 5% chromium content significantly improves oxidation and scaling resistance in elevated temperature service.
Enhanced Heat Transfer
Studs increase the effective external surface area and promote turbulence in gas flow, improving overall thermal efficiency.
Superior Durability
P5 alloy steel provides excellent creep resistance and structural stability during long-term exposure to high temperatures.
Lower Maintenance Requirements
The open stud configuration reduces dust accumulation and simplifies cleaning operations compared with closely spaced finned tubes.
Extended Equipment Life
Improved resistance to corrosion, oxidation, and thermal fatigue contributes to longer service intervals and reduced lifecycle costs.
Quality Standards
Manufacturing and inspection can be performed in accordance with:
- ASTM A335
- ASME SA335
- ASME Boiler and Pressure Vessel Code
- EN Standards (upon request)
- Client Specifications
- Third-Party Inspection Requirements (SGS, TÜV, BV, DNV, ABS, Lloyd's Register)
Why Choose ASTM A335 P5 Studded Fin Tubes?
For high-temperature heat recovery systems operating under severe process conditions, ASTM A335 P5 Studded Fin Tubes provide an optimal combination of thermal efficiency, oxidation resistance, mechanical strength, and operational reliability. Their proven performance in refinery heaters, petrochemical furnaces, and waste heat recovery equipment makes them a preferred solution for demanding industrial heat transfer applications worldwide.
