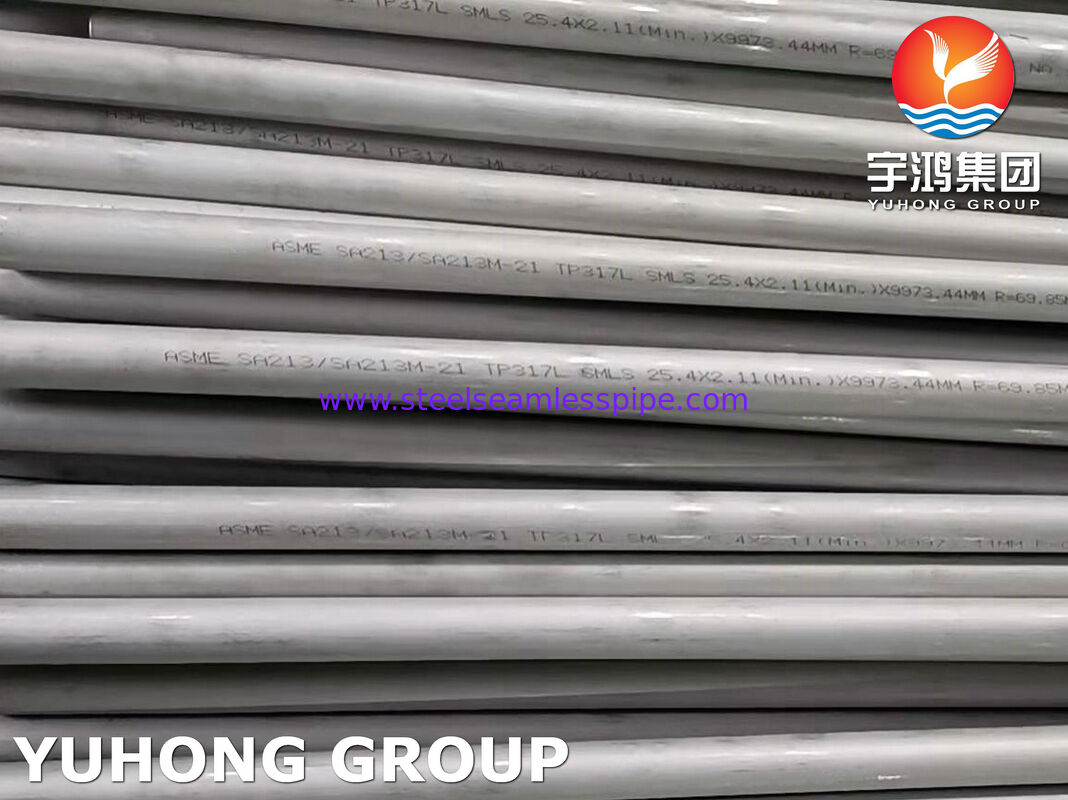

Seamless U Bend Heat Exchanger Tube for Chemical Petrochemical Oil Gas and Power Plants with Minimum Wall Thickness A213 TP317L
U bend tubes for heat exchangers applied mostly in Oil & Gas plants, Chemical & Petrochemical plants, Refineries, Power plants, Renewable energy plants.
Applications The common application fields are:
- Heat exchangers (condensers, evaporators, sea water desalinators)
- Chemical and petrochemical industries
- Food processing and refrigeration industries
Steel Grade:
| Ferrite |
Austenite |
Duplex |
Super Duplex |
Ni-Alloys |
Titanium |
|
TP410
TP405
S44400
S44660
TP430
TP409
TP409S
|
TP304/304L
TP316/316L
TP316Ti
TP317/317L
TP321
TP347
TP347 HFG
TP347
|
S31803
S32205
S32304
S31500
S31254
253MA
|
S32750
S32760 |
N06600
N06601
N06625
N08020
N08800
N08810
NO8811
N08825
N08904
|
Gr.2 |

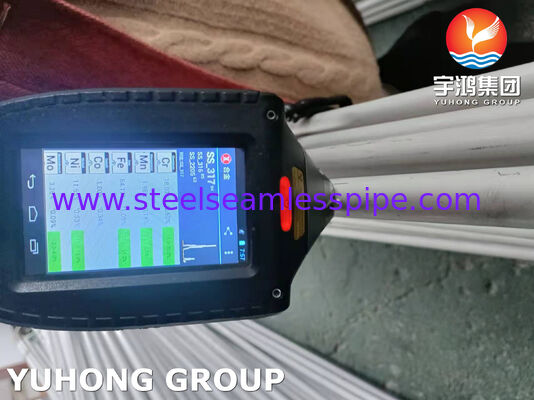

Chemical Composition of 317 / 317L Tube
| Grade |
C |
Mn |
Si |
P |
S |
Cr |
Mo |
Ni |
Fe |
| SS 317 |
0.08 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.845 min |
| SS 317L |
0.035 max |
2.0 max |
1.0 max |
0.045 max |
0.030 max |
18.00 – 20.00 |
3.00 – 4.00 |
11.00 – 15.00 |
57.89 min |
he unique properties of TP317L make it the material of choice for specific, demanding industrial applications where other steels would fail prematurely .
Exceptional Chemical Resistance: The higher percentage of molybdenum (3-4%) is the key. It gives TP317L outstanding resistance to attack from sulfuric, phosphoric, and formic acids. For example, in boiling 10% sulfuric acid, TP317L corrodes at a rate of 298.28 mils per year (mmpy), while 316L corrodes at a much higher rate of 635.7 mmpy . This makes it ideal for chemical processing equipment .
Superior Performance in Chloride-Rich Environments: The combination of molybdenum and nitrogen in some variants provides a high "Pitting Resistance Equivalent" (PRE) number, making TP317L significantly more resistant to the pitting and crevice corrosion caused by chlorides (e.g., saltwater) . This is critical for applications in marine environments, pollution control (flue-gas desulfurization), and pulp and paper manufacturing .
Reliability in High-Temperature Service: TP317L offers higher creep, stress-to-rupture, and tensile strength at elevated temperatures compared to conventional stainless steels . It also resists scaling up to about 1650°F (899°C) . This reliability is essential for components in power generation, such as condensers, and in refinery operations .

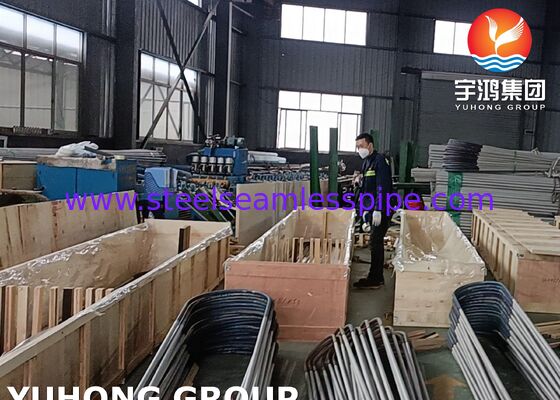

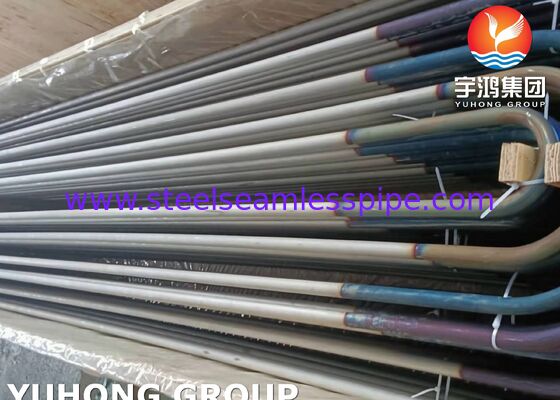

U-Bend Tubes:
-TEMA RCB 2.31 Standard Of The Tubular Exchanger Manufacturers Association (9th Edition).
-ASTM A688/ASME SA688 Standard Specification For Welded Tubes Of Austenitic Corrosion Resistant
Steel Grade Designed For Feed Water Boilers.
-ASTM B163/ASME SA163 Standard Techinical Requirements For Tubes Of Nickel And Nickel Alloy For
Condensers And Heat Exchangers.
-Customer Specifications.
Bending Radius: From 1.5*OD(Outside Diameter) To 1500mm
