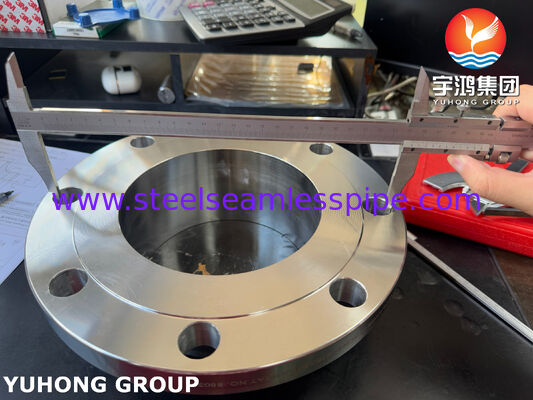

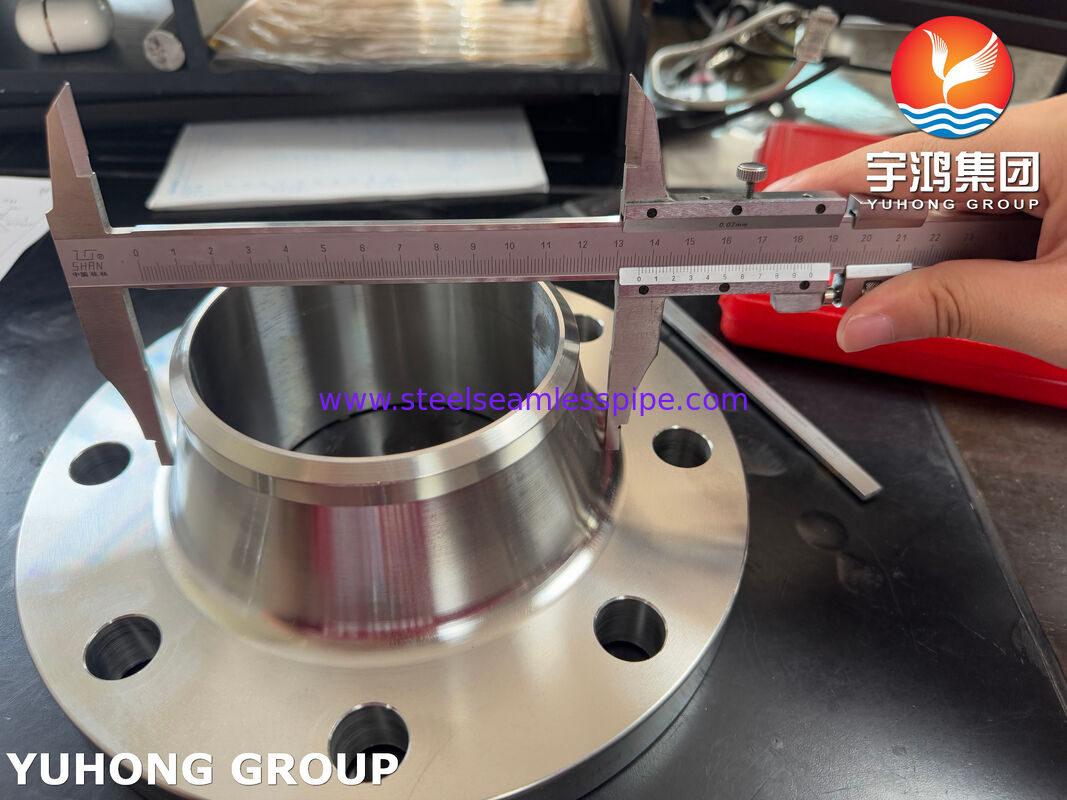

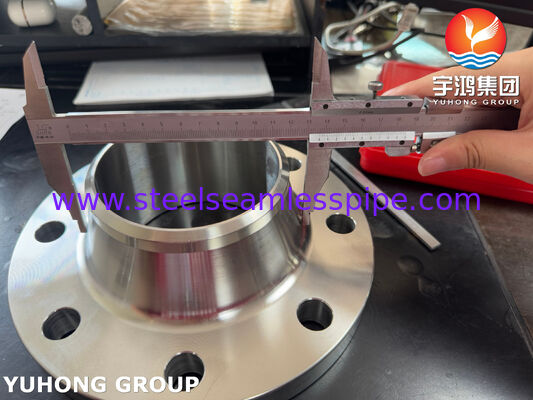

ASTM B564 UNS N08020 Alloy Weld Neck Flange ASME B16.5 Alloy 20 WNRF Flange

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	YUHONG
Sertifika:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model numarası:	ASTM B564 UNS N08020 Alaşım 20 WNRF Flanş

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 adet
Ambalaj bilgileri:	KONTRPLAK KASA / PALET
Teslim süresi:	7 Gün
Ödeme koşulları:	L/C,T/T

İletişim

Tüm ürünler

Paslanmaz Çelik Dikişsiz Boru (290)

Paslanmaz Çelik Dikişsiz Boru (277)

Dubleks Paslanmaz Çelik Boru (127)

Dubleks Paslanmaz Çelik Boru (29)

İğne tüpü (107)

Fin Tüpü (631)

Isı eşanjörü (17)

Eşanjör Borusu (424)

Sıcaklık Değiştiricisi tüp kümesi (37)

Eşanjör Boru Sayfası (116)

ısı değiştiricisi baffle (36)

Klima (8)

Basınçlı kap (4)

Paslanmaz Çelik Kaynaklı Boru (57)

Paslanmaz Çelik Dikişli Boru (114)

Nikel Alaşım Boru (261)

Nikel Alaşımlı Boru (79)

Bakır Alaşımlı Boru (227)

Alaşımlı Çelik Boru (184)

titanyum tüp (10)

Parlak Tavlı Boru (153)

Kazan Borusu (145)

çelik uydurma (804)

Çelik Flanş (590)

Diğerleri (391)

Kaplama parçaları (7)

Detaylı ürün tanımı

Ürün adı:	Nikel Alaşımlı Flanş	Boyut:	ANSI Flanşlar, ASME Flanşlar, BS Flanşlar, DIN Flanşlar, EN Flanşlar vb.
Standart:	ASTM B564, ASME SB564	Malzeme:	UNS N08020, Alaşım 20
Boyut:	1/2 "ila 48"	Basınç:	Sınıf150/300/600/9001500/2500
Tip:	Kör Flanş,Dişli Flanş,Slip on Flanş,Soket Kaynaklı Flanş,Kaynak Boyunlu Flanş,LAP Ortak Flanş	Flanş yüzü:	Flat Fact (FF), Yükseltilmiş Yüz (RF), Yüzük Tipi Eklem (RTJ)
Uygulama:	Petrol ve Gaz Endüstrisi, kimyasal işleme, Deniz Mühendisliği, vb.
Vurgulamak:	ASTM B564 Alloy 20 WNRF flange , ASME B16.5 weld neck flange , UNS N08020 alloy steel flange

ASTM B 564 UNS N08020 / Alloy 20 WNRF Flange Nickel Alloy Weld Neck Flange

ASTM B564 UNS N08020 / Alloy 20 Weld Neck Flange is a premium, high-integrity piping component designed for the most demanding corrosive and high-pressure services. Its strength, durability, and exceptional chemical resistance make it a critical solution in industries where failure is not an option.

When to Specify Alloy 20? Specify Alloy 20 when you need:

Proven resistance to sulfuric acid and phosphoric acid.
Good general corrosion resistance where 316L is failing.
Resistance to Chloride Stress Corrosion Cracking.
A cost-effective solution that avoids the high cost of more exotic alloys like Hastelloy.

Equivalent Material of ASTM B564 UNS N08020 Flange Alloy 20 Weld Neck Flange

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS	GOST
Alloy 20	N08020	2.4660	Z2NCUD31-20AZ	NiCr20CuMo	-	-	-

Chemical Composition (%) of ASTM B564 UNS N08020 Flange Alloy 20 Weld Neck Flange

Alloy 20	Ni	C	Mo	Mn	Si	Fe	Cu	S	P	Cr
Alloy 20	32 - 38	0.02 max	2 - 3	1 - 2	0.7 max	Bal	3 - 4	0.005 max	0.02 max	19 - 21

Mechanical Characteristics of ASTM B564 UNS N08020 Flange Alloy 20 Weld Neck Flange

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.1 g/cm3	1443 °C (2430 °F)	Psi - 35000 , MPa - 241	Psi - 80000 , MPa - 551	30 %

ASTM B564 UNS N08020 Weld Neck Flange Nickel Alloy Flange

Specifications List	ASTM/ ASME B564 / SB564
Standard Flange	BS, DIN, ASME, ANSI, EN
Size Chart	1/2″up to 48″ (15 - 1200NB)
Class / Pressure Rating	PN16, 2500#, PN25, 600#, 150#, 300#, 900#, PN10, 1500#, PN64, PN6, PN40
Flange Type	Weld Neck, Blind, Slip on, Socket, Thread, Long Weld Neck ...
ASTM Standards	DIN, ANSI/ASME B16.48, B16.5, BS4504, BS 10, B 16.47 Series A & B, EN-1092

Key Features & Advantages

Superior Strength in Harsh Environments: The combination of the robust weld neck design and the high-strength Alloy 20 forging makes it capable of withstanding high pressures and temperatures in corrosive service.
Excellent Weldability: The "weld neck" is designed to be butt-welded directly to the pipe, creating a strong, reliable joint. Alloy 20 itself is readily weldable using compatible filler metals (e.g., ER320LR, ENi-6620).
Long Service Life: Its exceptional resistance to a wide range of corrosives minimizes maintenance, downtime, and replacement costs.
Smooth Flow Path: The tapered hub allows for a smooth transition from the pipe to the flange, reducing turbulence and pressure drop

Application

This flange is used in industries where standard stainless steels (304/316) fail due to corrosion.

Chemical Processing Industry (CPI): Reactors, tanks, and piping handling sulfuric acid, phosphoric acid, and other aggressive chemicals.
Pharmaceutical Industry: For processes involving high-purity and corrosive intermediates.
Food and Beverage Processing: Especially in applications with acidic ingredients and chlorinated cleaning agents.
Oil & Gas (Upstream & Midstream): Handling of sour gases (H₂S) and other corrosive wellstream components.
Pulp & Paper Industry: Digesters and bleaching equipment.
Plastic Manufacturing: Plants producing synthetic fibers and polymers.
