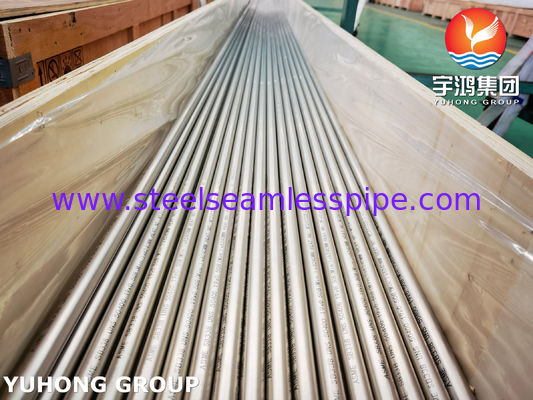

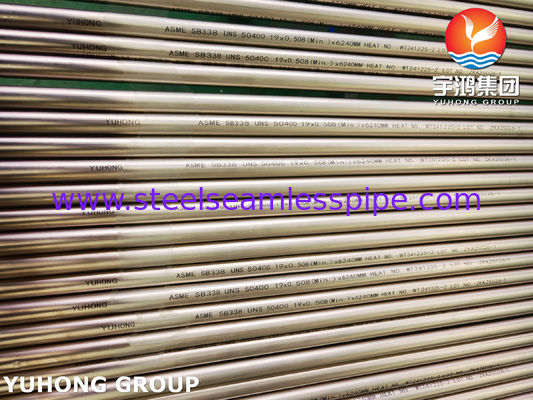

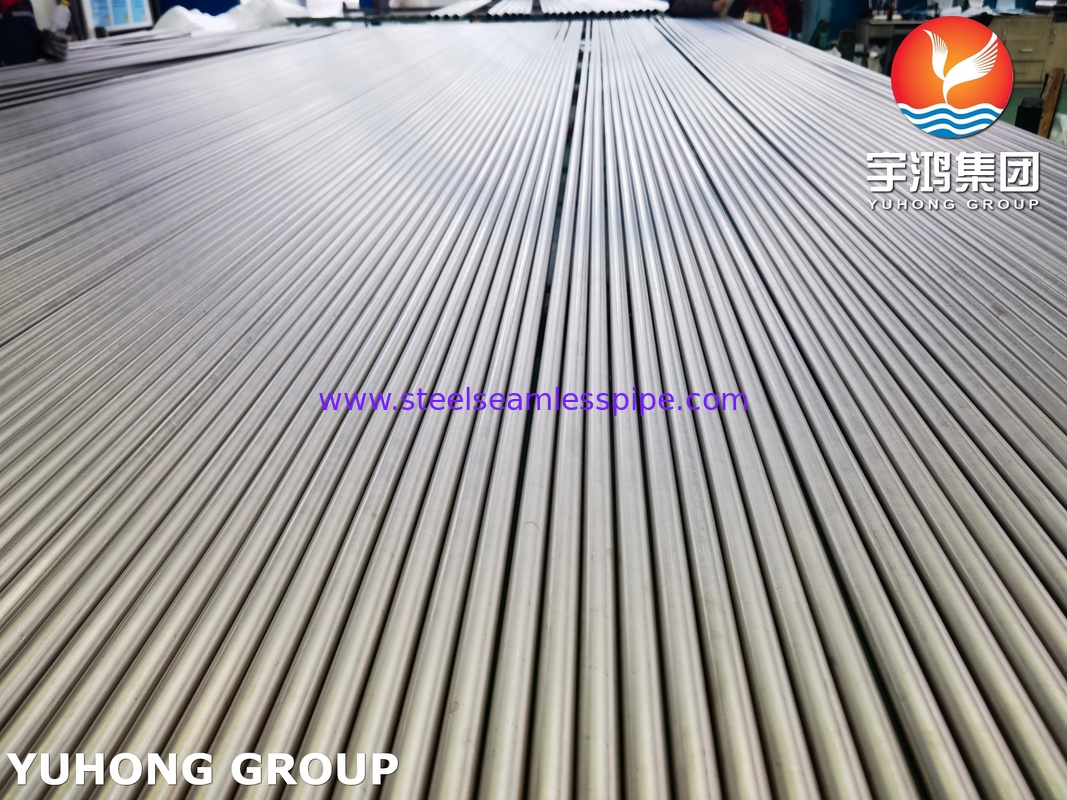

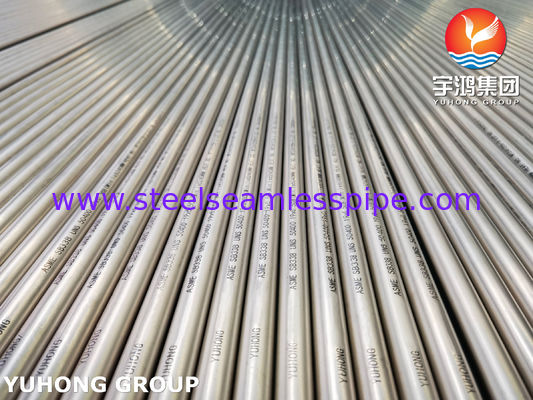

ASME SB338 Grade2 Ti2 UNS R50400 Pure Titanium Seamless Tube

Ürün ayrıntıları:

Menşe yeri:	ÇİN
Marka adı:	YUHONG
Sertifika:	ISO, SGS, BV, ISO&SGS, ISO/CE/SGS
Model numarası:	ASME SB338 UNS R50400

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 adet
Fiyat:	Anlaşılabilir
Ambalaj bilgileri:	Plastik kapalı katlı kılıf / demir kasa / demet
Teslim süresi:	5-80 gün
Ödeme koşulları:	L/C, T/T
Yetenek temini:	1500 ton/ay

İletişim

Tüm ürünler

Paslanmaz Çelik Dikişsiz Boru (290)

Paslanmaz Çelik Dikişsiz Boru (277)

Dubleks Paslanmaz Çelik Boru (127)

Dubleks Paslanmaz Çelik Boru (29)

İğne tüpü (107)

Fin Tüpü (631)

Isı eşanjörü (17)

Eşanjör Borusu (424)

Sıcaklık Değiştiricisi tüp kümesi (37)

Eşanjör Boru Sayfası (116)

ısı değiştiricisi baffle (36)

Klima (8)

Basınçlı kap (4)

Paslanmaz Çelik Kaynaklı Boru (57)

Paslanmaz Çelik Dikişli Boru (114)

Nikel Alaşım Boru (261)

Nikel Alaşımlı Boru (79)

Bakır Alaşımlı Boru (227)

Alaşımlı Çelik Boru (184)

titanyum tüp (10)

Parlak Tavlı Boru (153)

Kazan Borusu (145)

çelik uydurma (804)

Çelik Flanş (590)

Diğerleri (391)

Kaplama parçaları (7)

Detaylı ürün tanımı

Sertifika:	ISO, SGS, BV, ISO&SGS, ISO/CE/SGS	Standart:	ASTM,AISI,GB,DIN,JIS
Çelik sınıfı:	Gr.2 UNS R50400	Tip:	Dikişsiz, Kaynaklı, yuvarlak boru / tüp
Dış çap:	özelleştirilmiş	Kalınlık:	özelleştirilmiş
Uzunluk:	3000-6000mm, Özelleştirilmiş	Teknik:	Soğuk Haddelenmiş Sıcak Haddelenmiş, Soğuk Çekilmiş, Ekstrüzyon, Soğuk Çekilmiş/Soğuk Haddelenmiş ve
Vurgulamak:	ASME SB338 titanium seamless tube , Grade 2 titanium tube , UNS R50400 pure titanium tube

ASME SB338 Grade2 Ti2 UNS R50400 Pure Titanium Seamless Tube

Description

ASME SB338 is the specific standard titled "Standard Specification for Seamless and Welded Titanium and Titanium Alloy Tubes for Condensers and Heat Exchangers." While originally for heat exchangers, tubes made to this standard are used in many other critical applications.

Grade 2 is unalloyed titanium, known for its excellent corrosion resistance, good ductility, and moderate strength.

UNS R50400 as the Unified Numbering System code that uniquely identifies this specific material composition, corresponds directly to ASTM Grade 2 titanium.

Chemical Composition of ASTM B338 GRAE 2 Titanium Tubes

Element	Chemical Composition %
Element	Grade 1	Grade 2	Grade 3	Grade 5	Grade 7	Grade 9	Grade 11	Grade 12	Grade 23
Nitrogen, max	0.03	0.03	0.05	0.05	0.03	0.03	0.03	0.03	0.03
Carbon, max	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08
Hydrogen, max	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.0125
Iron, max	0.20	0.30	0.30	0.40	0.30	0.25	0.20	0.30	0.25
Oxygen, max	0.18	0.25	0.35	0.20	0.25	0.15	0.18	0.25	0.13
Aluminum	…	…	…	5.5-6.75	…	2.5-3.5	…	…	5.5-6.5
Vanadium	…	…	…	3.5-4.5	…	2.0-3.0	…	…	3.5-4.5
Tin	…	…	…	…	…	…	…	…	…
Ruthenium	…	…	…	…	…	…	…	…	…
Palladium	…	…	…	…	0.12-0.25	…	0.12-0.25	…	…
Molybdenum	…	…	…	…	…	…	…	0.2-0.4	…
Chromium	…	…	…	…	…	…	…	…	…
Nickel	…	…	…	…	…	…	…	0.6-0.9	…
Niobium	…	…	…	…	…	…	…	…	…
Ziconium	…	…	…	…	…	…	…	…	…
Silicon	…	…	…	…	…	…	…	…	…
Residuals, max each	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1
Residuals, max total	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
Titanium	balance	balance	balance	balance	balance	balance	balance	balance	balance

ASTM B338 Grade 2 Tensile Strength of Titanium Tubes

Grade	Tensile Strength, min		Yield Strength (0.2% Offset)				Elongation 2 in. or 50 mm
			min		max		Elongation 2 in. or 50 mm
	Ksi	(Mpa)	Ksi	(Mpa)	Ksi	(Mpa)	gage length min %
Grade 1	35	(240)	25	(170)	45	(310)	24
Grade 2	50	(345)	40	(275)	65	(450)	20
Grade 3	65	(450)	55	(380)	80	(550)	18
Grade 5	130	(895)	120	(828)	…	…	10
Grade 7	50	(345)	40	(275)	65	(450)	20
Grade 9	90	(620)	70	(483)	45	…	15
Grade 11	35	(240)	25	(170)	…	(310)	24
Grade 12	70	(483)	50	(345)	…	…	18
Grade 23	120	(828)	110	(759)	…	…	10

Applications

Heat Exchangers & Condensers: The primary application in the standard's title. Used in chemical processing, power generation (especially offshore platforms), and desalination plants.

Chemical & Petrochemical Processing: For piping systems, reactors, and vessels handling corrosive chemicals.

Marine & Offshore: For seawater piping, ballast systems, and other components exposed to saltwater.

Aerospace: For hydraulic and pneumatic systems, and airframe components where weight savings are critical.

Medical & Pharmaceutical: For implants, surgical instruments, and processing equipment due to its biocompatibility.
