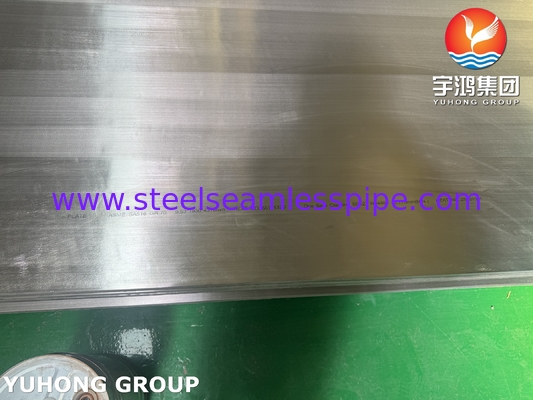

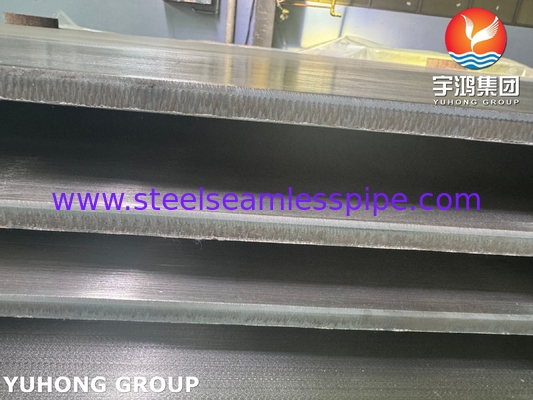

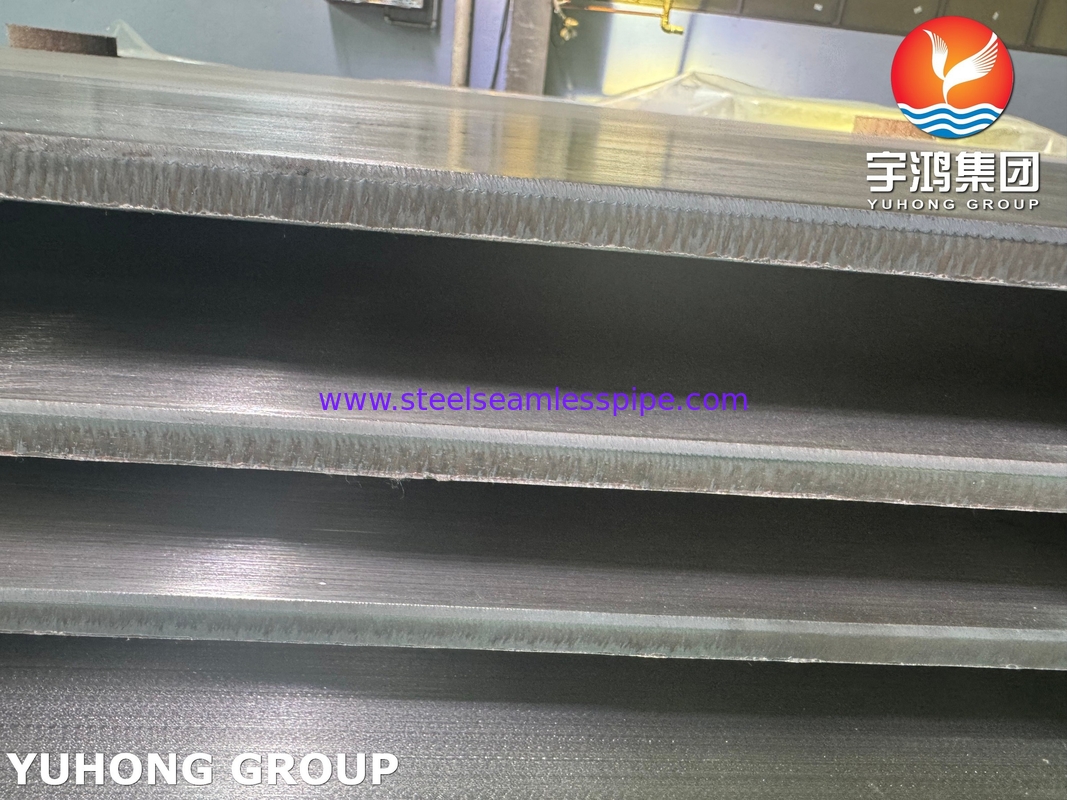

Carbon Steel Cladding Plate A516 Gr 70 With N04400 One Side Explosive Composite

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	YUHONG
Sertifika:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model numarası:	ASME SA516 GR.70 N04400 kaplamalı karbon çelik plaka

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1 bilgisayar
Ambalaj bilgileri:	PALET,KONTPRAK KUTU
Teslim süresi:	7 Gün
Payment Terms:	L/C, T/T

İletişim

Tüm ürünler

Paslanmaz Çelik Dikişsiz Boru (285)

Paslanmaz Çelik Dikişsiz Boru (273)

Dubleks Paslanmaz Çelik Boru (127)

Dubleks Paslanmaz Çelik Boru (28)

İğne tüpü (98)

Fin Tüpü (608)

Isı eşanjörü (15)

Eşanjör Borusu (424)

Sıcaklık Değiştiricisi tüp kümesi (37)

Eşanjör Boru Sayfası (115)

ısı değiştiricisi baffle (36)

Klima (7)

Basınçlı kap (4)

Paslanmaz Çelik Kaynaklı Boru (57)

Paslanmaz Çelik Dikişli Boru (112)

Nikel Alaşım Boru (259)

Nikel Alaşımlı Boru (75)

Bakır Alaşımlı Boru (219)

Alaşımlı Çelik Boru (177)

titanyum tüp (9)

Parlak Tavlı Boru (153)

Kazan Borusu (138)

çelik uydurma (791)

Çelik Flanş (577)

Diğerleri (386)

Kaplama parçaları (5)

Detaylı ürün tanımı

Malzeme:

ASME SA516 GR.70 N04400 kaplamalı karbon çelik plaka

Ürün Adı:

Kaplama plakası

Kaplama Tipi:

Patlayıcı, Kaynak kaplaması

NDT:

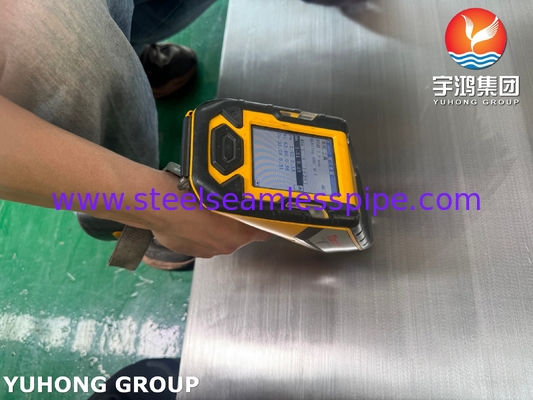

%100 PT, UT, PMI

Vurgulamak:

Explosive composite Cladding Plate

One Side Explosive Cladding Plate

Explosive composite N04400 Cladding Plate

CARBON STEEL CLADDING PLATE A516 GR.70 WITH N04400 ONE SIDE CLADDING

Explosive Composite Steel Plate (Explosion-Welded Clad Plate)

Explosive composite steel plate, also known as explosion-welded clad plate, is a high-performance material created by bonding two or more dissimilar metals using controlled detonation. This process forms a metallurgical bond without significantly altering the properties of the base metals.

1. How Explosive Cladding Works

The process involves:

- Base Plate (Backing Metal): Typically carbon steel (e.g., A516 Gr.70) or low-alloy steel.

- Clad Layer (Corrosion-Resistant Metal): Such as Monel 400 (N04400), stainless steel, titanium, or nickel alloys.

- Explosive Material: A high-energy explosive (e.g., RDX or ammonium nitrate) is placed over the clad layer.

- Detonation: When ignited, the explosion creates extreme pressure (up to 10 GPa) and high velocity (hundreds to thousands of m/s), forcing the two metals to collide at an angle, creating a metallurgical bond.

2. Advantages of Explosive Clad Plates

Strong Bonding: Higher shear strength than roll-bonded or weld-overlay cladding.

Wide Material Combinations: Compatible with metals that are otherwise difficult to weld (e.g., steel + titanium, steel + copper).

No Intermetallic Brittleness: Unlike fusion welding, explosion welding avoids harmful phases.

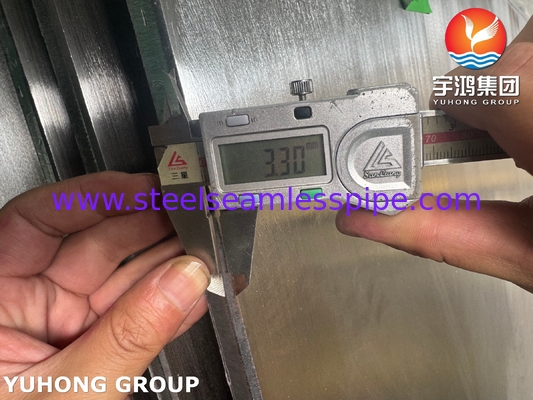

Thickness Flexibility: Clad layer can range from 1mm to 30mm.

Cost-Effective: Saves expensive alloys by using them only where needed.

3. Applications of Explosive Composite Plates

- Oil & Gas: Pressure vessels, pipelines, offshore platforms.

- Chemical Processing: Reactors, heat exchangers, acid storage tanks.

- Power Plants: FGD systems, condenser tubes.

- Marine & Desalination: Seawater handling equipment.

- Aerospace & Defense: Lightweight armor, rocket components.

Method	Explosive Welding	Weld Overlay
Bond Strength	Very High	Moderate-High
Material Options	Very Wide	Limited
Heat Input	None (Cold Process)	Very High
Cost	Medium-High	High (Labor)
Thickness Control	Excellent	Poor (Uneven)
