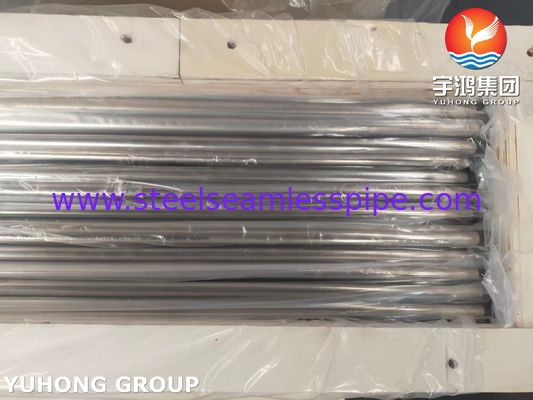

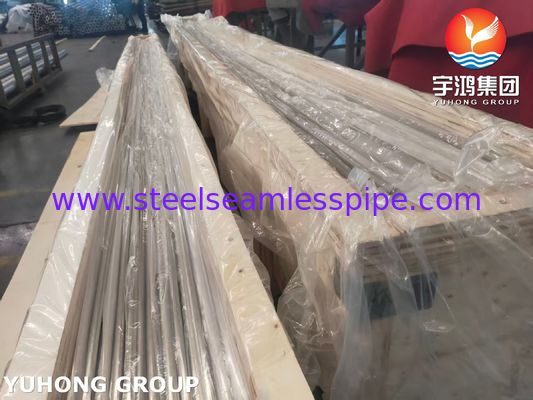

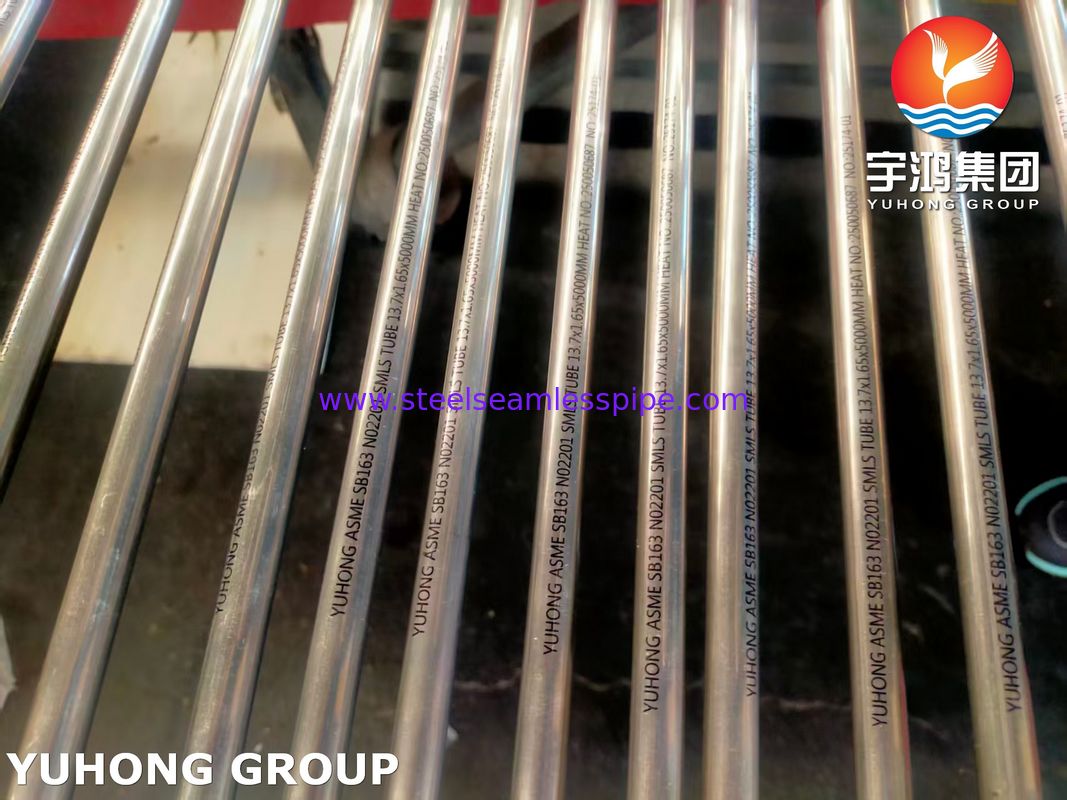

ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes

ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes

  • ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes
  • ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes
  • ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes
  • ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes
ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes
Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: YUHONG
Sertifika: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model numarası: ASME SB163
Ödeme & teslimat koşulları:
Min sipariş miktarı: 500kg
Fiyat: Depend
Ambalaj bilgileri: Katlı dava
Teslim süresi: 30-65 gün
Ödeme koşulları: T/T, L/C
Yetenek temini: 1000 ton/ay
İletişim
Tüm ürünler
Paslanmaz Çelik Dikişsiz Boru (290)
Paslanmaz Çelik Dikişsiz Boru (277)
Dubleks Paslanmaz Çelik Boru (127)
Dubleks Paslanmaz Çelik Boru (29)
İğne tüpü (107)
Fin Tüpü (631)
Isı eşanjörü (17)
Eşanjör Borusu (424)
Sıcaklık Değiştiricisi tüp kümesi (37)
Eşanjör Boru Sayfası (116)
ısı değiştiricisi baffle (36)
Klima (8)
Basınçlı kap (4)
Paslanmaz Çelik Kaynaklı Boru (57)
Paslanmaz Çelik Dikişli Boru (114)
Nikel Alaşım Boru (261)
Nikel Alaşımlı Boru (79)
Bakır Alaşımlı Boru (227)
Alaşımlı Çelik Boru (184)
titanyum tüp (10)
Parlak Tavlı Boru (153)
Kazan Borusu (145)
çelik uydurma (804)
Çelik Flanş (590)
Diğerleri (391)
Kaplama parçaları (7)
Detaylı ürün tanımı
Ürün: Kondenserler ve Eşanjörler Borular Kondansatörler ve Eşanjör Boruları Malzemesi: Nikel alaşımı
Kondenserler ve Eşanjörler Borular Standardı: ASME SB163 Kondenserler ve Eşanjörler Borular Sınıfı: N02201
Kondenserler ve Eşanjörler Borular Uygulaması: Isı Eşanjörleri / Kazanlar / Kondenserler vb. Kondenserler ve Eşanjörler Boruları Ambalajı: Katlı dava
Vurgulamak:

ASME SB163 nickel alloy tubes

,

N02201 seamless condenser tubes

,

nickel alloy heat exchanger tubes

ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes

YUHONG Group can offer ASTM B163 / ASME SB163 N02201 SMLS nickel alloy tubes.



ASTM B163 / ASME SB163 is the standard specification for seamless nickel and nickel-alloy condenser and heat-exchanger tubes. N02201 (Alloy 201) likes N02200, it's a commercially pure nickel (99.0% min) known for its excellent resistance to corrosion, particularly in caustic environments, and its high thermal and electrical conductivity. Its seamless nature ensures reliability under pressure and in corrosive service.N02201 resists corrosion in a wide range of reducing and neutral media, including fresh water, natural waters, non-oxidizing salts, and alkaline solutions. It is particularly resistant to caustic alkalies.


N02201 maintains good strength and ductility from cryogenic temperatures up to moderately high temperatures. Alloy 201 has very low carbon content (<0.02%), which prevents carbide precipitation (sensitization) during welding and service, preserving its corrosion resistance in the heat-affected zones.



ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes 0



Chemical Composition % Alloy 201 / UNS N02201


Nickel Copper Iron Manganese Carbon Silicon Sulfur
99.0 min 0.25 max 0.40 max 0.35 0.02max 0.35 0.01
Nickel element shall be determined arithmetically by difference.


Mechanical Property Alloy 201 / UNS N02201


Condition Tensile Strength min Yield Strength min Elongation (%) Rockwell Hardness
Annealed  50ksi (345MPa) 28ksi (193MPa) 40 min. /
  Stress-relieved 60ksi (414MPa) 55ksi (379MPa) 15 min. B62 max



SB163 N02201 tubes common applications include:



Caustic Evaporators and Concentrators
Tubes are used in heat exchangers that concentrate sodium hydroxide (NaOH) or potassium hydroxide (KOH) solutions from weak concentrations to 50% or even 73%. Stainless steel would corrode catastrophically in this service.
Chemical Processing Industry (CPI)
1.Organic Chlorination Processes: Handling chlorinated hydrocarbons and associated by-products like HCl.
2.Production of Plastics and Synthetic Fibers: Where corrosive catalysts or intermediates are present.
3.Fine Chemical and Pharmaceutical Synthesis: For reactors and heat exchangers handling aggressive media where purity is critical (nickel ions are less problematic than corrosion products from other metals).
Power Generation & Marine
1.Feedwater Heaters in Advanced Plants: Where water chemistry is highly controlled, and reliability is paramount.
2.Specialized Condensers: In geothermal plants or in coastal/offshore facilities where cooling water is highly aggressive, brackish, or polluted, and where chlorination is used for biofouling control.

Other Specialized Applications
1.HF Alkylation Units in oil refineries (for handling hydrogen fluoride).
2.Production and Handling of Fluorine and Fluorinated Compounds.
3.Sea Water Desalination Plants, particularly in the high-temperature brine heaters and sections with high chloride concentration.

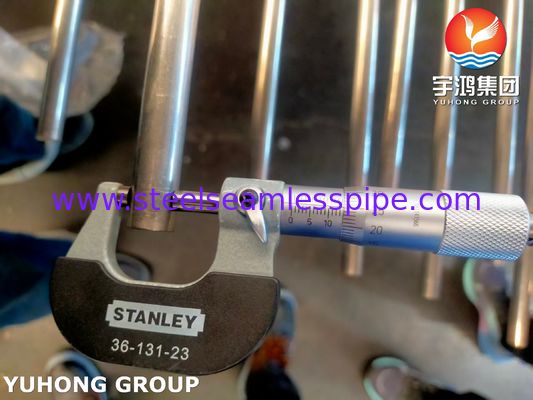

Testing and Inspection



Hydrostatic Test (or Nondestructive Electric Test)

Flattening Test,Reverse Flattening Test

Flaring Test

Hardness Test

Tension Tests

Chemical Analysis


ASME SB163 N02201 Nickel Alloy Seamless Condensers And Heat Exchangers Tubes 1
