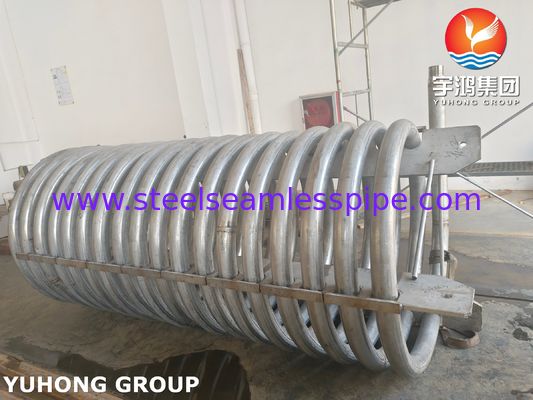

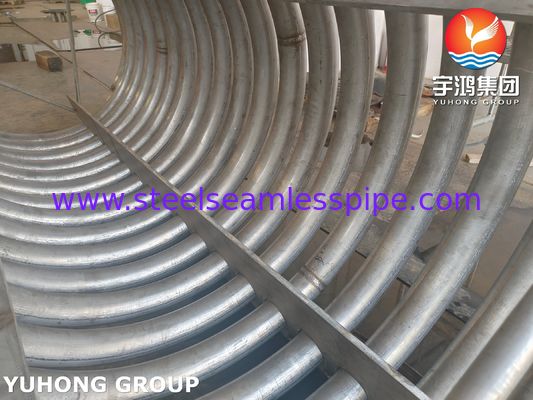

Name: STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT
Brand: Yuhong Group Co.,Ltd
SKU: ASTM A312, ASME SA312
Price: 150000.00 USD
Availability: InStock

Yuhong Holding Group Co., LTD

Turkish

Ana sayfa

Ürünler

Hakkımızda

Fabrika turu

Kalite kontrol

Bize ulaşın

Şirket haberleri

Ana sayfa Ürünler Paslanmaz Çelik Dikişsiz Boru

STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	YUHONG
Sertifika:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model numarası:	ASTM A312, ASME SA312

Ödeme & teslimat koşulları:

Min sipariş miktarı:	100kgs

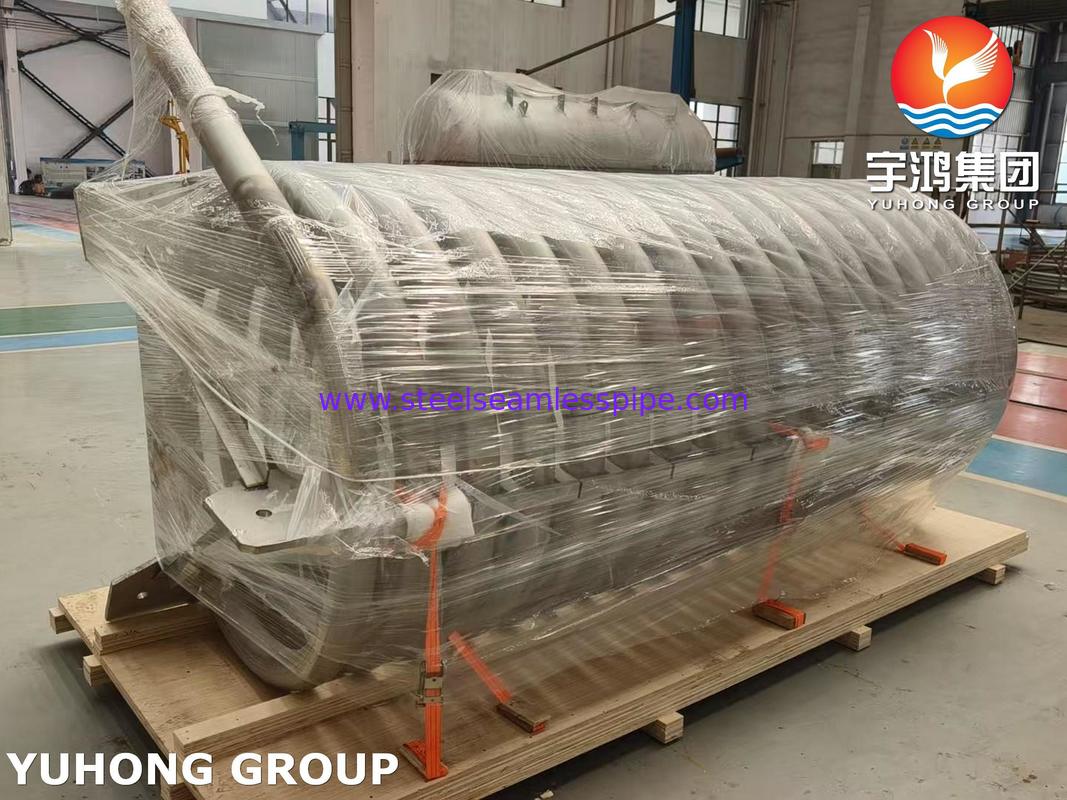

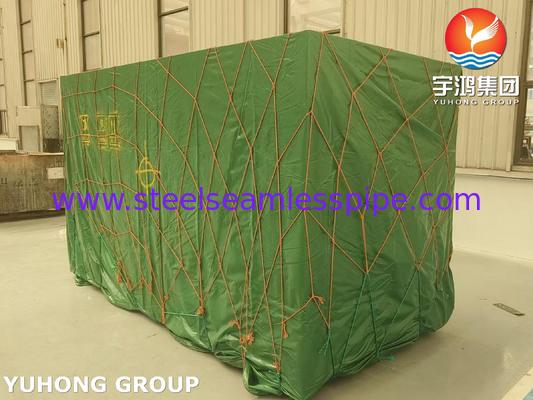

Ambalaj bilgileri:	KONTRPLAK KUTU,PAKET,DOKUMA ÇANTA
Teslim süresi:	7 gün
Ödeme koşulları:	L/C, T/T

İletişim

Tüm ürünler

Paslanmaz Çelik Dikişsiz Boru (290)

Paslanmaz Çelik Dikişsiz Boru (277)

Dubleks Paslanmaz Çelik Boru (127)

Dubleks Paslanmaz Çelik Boru (29)

İğne tüpü (107)

Fin Tüpü (631)

Isı eşanjörü (17)

Eşanjör Borusu (424)

Sıcaklık Değiştiricisi tüp kümesi (37)

Eşanjör Boru Sayfası (116)

ısı değiştiricisi baffle (36)

Klima (8)

Basınçlı kap (4)

Paslanmaz Çelik Kaynaklı Boru (57)

Paslanmaz Çelik Dikişli Boru (114)

Nikel Alaşım Boru (261)

Nikel Alaşımlı Boru (79)

Bakır Alaşımlı Boru (227)

Alaşımlı Çelik Boru (184)

titanyum tüp (10)

Parlak Tavlı Boru (153)

Kazan Borusu (145)

çelik uydurma (804)

Çelik Flanş (590)

Diğerleri (391)

Kaplama parçaları (7)

Detaylı ürün tanımı

Standart:	ASTM,ASME,JIS,EN...	Malzeme:	TP304, TP304L,TP316, TP316L, TP310S..
Uzunluk:	Çizime göre	Od:	1/2" İLA 10"
Tip:	Kesintisiz, kaynaklı	Yüzey:	Cilalı, salamura, parlak tavlanmış
Vurgulamak:	stainless steel seamless coil pipe , TP310S start up heater pipe , coil pipe with coil support

STAINLESS STEEL SEAMLESS COIL PIPE TP310S FOR START UP HEATER WITH COIL SUPPORT

The coiled pipe unit can run thousands of meters of continuous joint-free steel pipes (diameter 9~88.9mm) into the production pipe of an oil and gas well to complete specific workover operations such as well cleanout, fishing, fracturing, acidification, etc. or into its casing for logging operations or direct.Coil heaters can be closely wound to provide concentrated heat or can be stretched to fulfill distributed wattage needs. Coil heaters can also accommodate integrated thermocouples for precise temperature control and quick response.

Bent and formed stainless steel pipe is used in a variety of applications, including:

Manifold assemblies for the transportation industry
Hydraulic fluid supply lines for industrial purposes
Bumpers to protect OEM products
Housing for water monitoring systems
Tubular handles used in OEM instruments and machinery

Comparison with Other Heater Types
Feature	Coil-Shaped Tubular Heater	Straight Tubular Heater	Open Coil Heater (Exposed Wire)
Structure	Metal tube bent into a coil	Straight metal tube	Bare, exposed resistance wire coiled around insulators
Robustness	Very High. Protected from physical contact and environment.	High. Protected but less surface area in a compact space.	Low. Exposed and fragile.
Watt Density	Very High	Moderate	High
Typical Use	Air heating, high-temp platens	Immersion in liquids, surface mounting on tanks	Toasters, domestic space heaters, non-hazardous air ducts
Safety	Very Safe. Sheath prevents electrical contact.	Very Safe.	Less Safe. Risk of electric shock and fire from contact.

Grades:

304, 316L, 310S, and others as specified by the customer.

Chemical Composition of ASTM A312 TP310S

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N
310	min. max.	- 0.25	- 2.00	- 1.50	- 0.045	- 0.030	24.0 26.0	-	19.0 22.0
310S	min. max.	- 0.08	- 2.00	- 1.50	- 0.045	- 0.030	24.0 26.0	-	19.0 22.0

Mechanical Properties of ASTM A312 310S

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Rockwell B (HR B) max	Brinell (HB) max
310	515	205	40	95	217
310S	515	205	40	95	217
