ASTM A335 P5 P9 P11 P22 Studded Tube Heat Exchange System

ASTM A335 P5 P9 P11 P22 Studded Tube Heat Exchange System

  • ASTM A335 P5 P9 P11 P22 Studded Tube Heat Exchange System
  • ASTM A335 P5 P9 P11 P22 Studded Tube Heat Exchange System
  • ASTM A335 P5 P9 P11 P22 Studded Tube Heat Exchange System
  • ASTM A335 P5 P9 P11 P22 Studded Tube Heat Exchange System
ASTM A335 P5 P9 P11 P22 Studded Tube Heat Exchange System
Ürün ayrıntıları:
Menşe yeri: ÇİN
Marka adı: YUHONG
Sertifika: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model numarası: ASTM A335 P5 P9 P11 P22 Çivili Tüp
Ödeme & teslimat koşulları:
Min sipariş miktarı: 500kgs
Ambalaj bilgileri: Katlı kasa /demir çantası
Teslim süresi: 7 gün
Ödeme koşulları: L/C, T/T
İletişim
Tüm ürünler
Paslanmaz Çelik Dikişsiz Boru (290)
Paslanmaz Çelik Dikişsiz Boru (277)
Dubleks Paslanmaz Çelik Boru (127)
Dubleks Paslanmaz Çelik Boru (29)
İğne tüpü (107)
Fin Tüpü (631)
Isı eşanjörü (17)
Eşanjör Borusu (424)
Sıcaklık Değiştiricisi tüp kümesi (37)
Eşanjör Boru Sayfası (116)
ısı değiştiricisi baffle (36)
Klima (8)
Basınçlı kap (4)
Paslanmaz Çelik Kaynaklı Boru (57)
Paslanmaz Çelik Dikişli Boru (114)
Nikel Alaşım Boru (261)
Nikel Alaşımlı Boru (79)
Bakır Alaşımlı Boru (227)
Alaşımlı Çelik Boru (184)
titanyum tüp (10)
Parlak Tavlı Boru (153)
Kazan Borusu (145)
çelik uydurma (804)
Çelik Flanş (590)
Diğerleri (391)
Kaplama parçaları (7)
Detaylı ürün tanımı
Ürün adı: Çivili Tüp Tüp malzemesi: Karbon çelik, paslanmaz çelik, alaşım çelik
Tip: Kaynak, Çivili Tüp od: 20 mm ila 219 mm
Tüp kalınlığı: 2 mm ila 16 mm Tüp uzunluğu: Özelleştirebilir
Yüzgeç kalınlığı: 0,8 mm ila 4 mm Kanat Yoğunluğu: Metre Başına 43 Kanat ile Metre Başına Maks. 287 Kanat
Fin yüksekliği: 0,25" (6,35 mm) ila 1,5"(38 mm) Başvuru: Hava Soğutucu, Eşanjör, Buharlaştırıcı, Kondenser

ASTM A335 P5 P9 P11 P22 Studded Tube Heat Exchange System

​


What is a Studded Tube?




This is a specialized component designed for use in high-temperature and corrosive environments. Unlike finned tubes, which maximize convection surface area, studded tubes are primarily used to secure and protect refractory linings or to facilitate heating in certain furnace types.

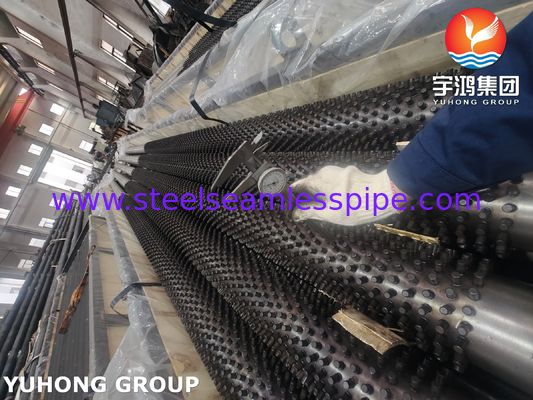

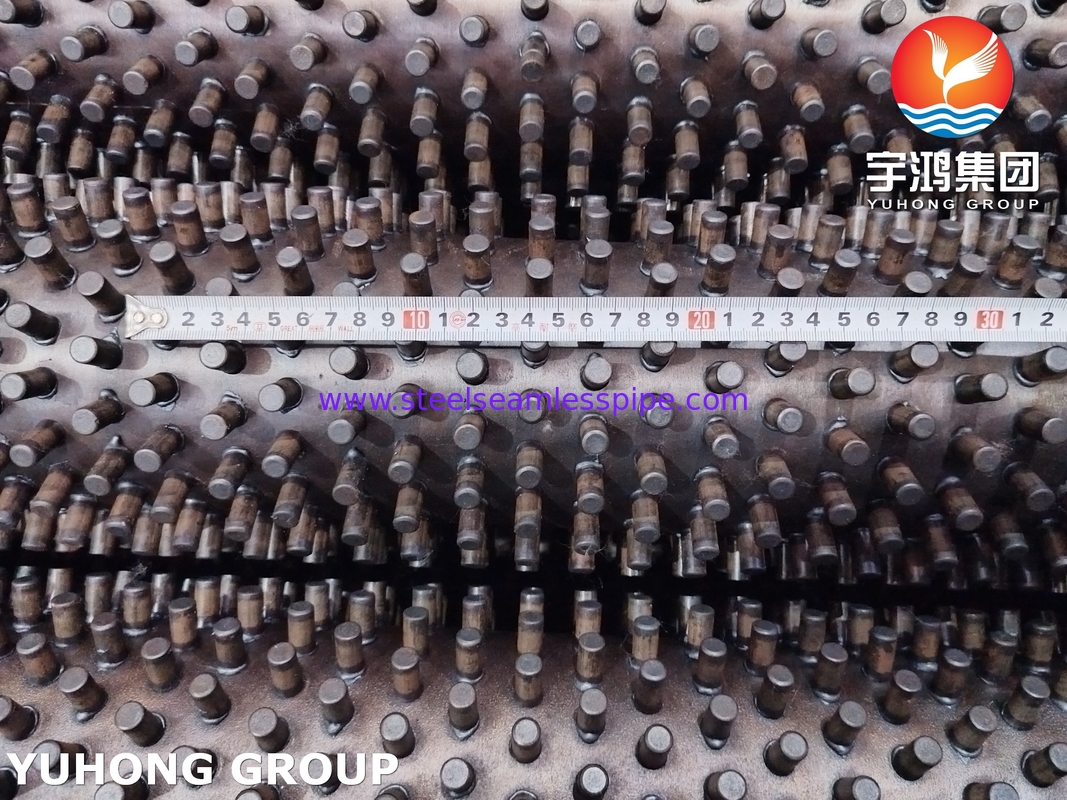

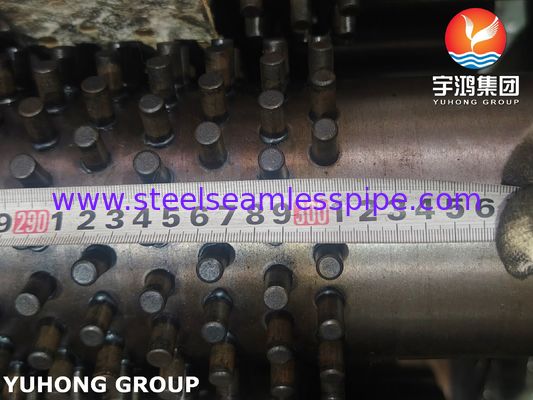

Studded tubes are manufactured by welding a series of studs (pins) to the outer surface of a base tube. These studs act as anchors, securing the castable refractory material to the tube surface.


 ASTM A335 P5 base tube, combined with studs made from compatible materials, creates a robust system for lining furnaces, boilers, and reactors.




Studded Tube



Product:

studded tubes, welded stud tubes,studded steel tubes,studded fin tubes

Application:

, generally in furnaces and boilers where the surface is exposed to a very corrosive environment and where very dirty gas streams require frequent or aggressive cleaning.

Size:

OD: 38 mm ~219 mm

WT: 4.0 mm ~20 mm /Tube Length (Mtr) :≤ 15Mtrs

Fin Height: 6.0 mm ~ 38 mm

Base Tube(fin) Material:

Carbon Steel



Alloy Steel



Stainless Steel






Studded pipe size and material


Tube O.D.: 25~355.6 (mm) 1”~14”(NPS)
Tube Wall Thk.: 3.5~28.6 (mm) 0.14”~1.1”
Tube Length: ≤25,000 (mm) ≤82 ft
Stud Dia.: 6~25.4 (mm) 0.23”~1”
Stud Height: 10~50.8 (mm) 0.4”~2”
Stud Pitch: 8~30 (mm) 0.3”~1.2”
Stud Shape: Cylindrical, Elliptical, Round, Lens type
Stud to tube surface angle: Vertical, angular, staggered rows
Stud Material:

C.S. (most common grade is Q235B)

S.S. (most common grade are AISI 304, 316, 409, 410, 321,347 )

A.S.
Tube Material:

C.S. (most common grade is A106 Gr.B)

S.S. (most common grade are TP304, 316, 321, 347 )

A.S.(most common grade are T/P5,9,11,22,91 )
* This table is used as a general guide to our capabilities, please call us for any other customized cases.










Type Description Base tube Fin specification (mm)
Type O.D. (mm) Fin pitch Fin height Fin thick
Welding HFW fin tube 16-219 3-25 5-30 0.8-3
H/HH Type Fin Tube 25-63 8-30 <200 1.5-3.5
Studed fin tube 25-219 8-30 5-35 φ5-20









Alloy Steel Chemical Compositions

Grade UNS Designation Composition, %
Carbon Manganese Phosphorus, max Sulfur, max Silicon Chromium Molybdenum
P1 K11522 0.10-0.20 0.30-0.80 0.025 0.025 0.10-0.50 -- 0.44-0.65
P2 K11547 0.10-0.20 0.30-0.61 0.025 0.025 0.10-0.30 0.50-0.81 0.44-0.65
P5 K41545 0.15MAX 0.30-0.60 0.025 0.025 0.50MAX 4.00-6.00 0.45-0.65
P9 K90941 0.15MAX 0.30-0.60 0.025 0.025 0.25-1.00 1.00-1.50 0.44-0.65
P11 K11597 0.05-0.15 0.30-0.60 0.025 0.025 0.50-1.00 1.00-1.50 0.44-0.65
P12 K11562 0.05-0.15 0.30-0.61 0.025 0.025 0.5MAX 0.80-1.25 0.44-0.65
P15 K11578 0.05-0.15 0..30-0.60 0.025 0.025 1.15-1.65 -- 0.44-0.65
P21 K31545 0.05-0.15 0.30-0.60 0.025 0.025 0.50MAX 2.65-3.35 0.80-1.06

Chemical Composition of ASTM A335 P5 Seamless Pipe
Grade Chemical Composition(%)
C Mn P S Si Cr Mo
P5 ≤0.015 0.30-0.60 ≤0.025 ≤0.025 ≤0.50 4.00-6.00 0.45-0.65

Mechanical Properties of ASTM A335 P5 Seamless Pipe
Grade Mechanical property
Tensile Strength(MPa) Yield Strength(MPa) Elongation(%)
P5 ≥415 ≥205 ≥30







Applications




Studded tubes are essential in the most demanding, high-temperature industrial processes:



Petroleum refining:



Fluid catalytic cracking (FCC) units: Cyclones and plenums in reactors and regenerators.



Steam methane reformer (SMR) furnaces: Components of the radiant walls and roof of the furnace, where process tubes are exposed to intense flames.



Chemical processing: Used in ethylene cracking furnaces and other high-temperature reactors.



Power Generation:






ASTM A335 P5 P9 P11 P22 Studded Tube Heat Exchange System 0
