ASTM A268 TP410 Ferritic Stainless Steel Seamless Pipe For Heat Exchanger

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	YUHONG GROUP
Sertifika:	ABS , GL , DNV , NK , PED , AD2000 , GOST9941-81 , CCS , ISO 9001-2008
Model numarası:	TP410

Ödeme & teslimat koşulları:

Min sipariş miktarı:	500KG
Fiyat:	Anlaşılabilir
Ambalaj bilgileri:	Kontrplak Kasa/Paket
Teslim süresi:	miktar bağlıdır
Ödeme koşulları:	T/T, L/C bakışta
Yetenek temini:	10000Ton/Ay

İletişim

Tüm ürünler

Paslanmaz Çelik Dikişsiz Boru (285)

Paslanmaz Çelik Dikişsiz Boru (273)

Dubleks Paslanmaz Çelik Boru (127)

Dubleks Paslanmaz Çelik Boru (28)

İğne tüpü (98)

Fin Tüpü (608)

Isı eşanjörü (15)

Eşanjör Borusu (424)

Sıcaklık Değiştiricisi tüp kümesi (37)

Eşanjör Boru Sayfası (115)

ısı değiştiricisi baffle (36)

Klima (7)

Basınçlı kap (4)

Paslanmaz Çelik Kaynaklı Boru (57)

Paslanmaz Çelik Dikişli Boru (112)

Nikel Alaşım Boru (259)

Nikel Alaşımlı Boru (75)

Bakır Alaşımlı Boru (219)

Alaşımlı Çelik Boru (177)

titanyum tüp (9)

Parlak Tavlı Boru (153)

Kazan Borusu (138)

çelik uydurma (791)

Çelik Flanş (577)

Diğerleri (386)

Kaplama parçaları (5)

Detaylı ürün tanımı

Malzeme sınıfı:	TP410	Standart:	ASTM A268
Boyut:	19.05 - 76.2mm	WT:	24 mm'ye kadar
Uzunluk:	Tek rastgele, çift rastgele ve kesilmiş uzunluk	NDT:	ET / HT / UT / PT
Paketleme:	Kontrplak kasa / paket	Uygulama:	Petrol Gazı Eşanjörü
Vurgulamak:	A268 Ferritic Stainless Steel Pipe , ASTM A268 Stainless Steel Pipe , TP410 Ferritic Stainless Steel Pipe

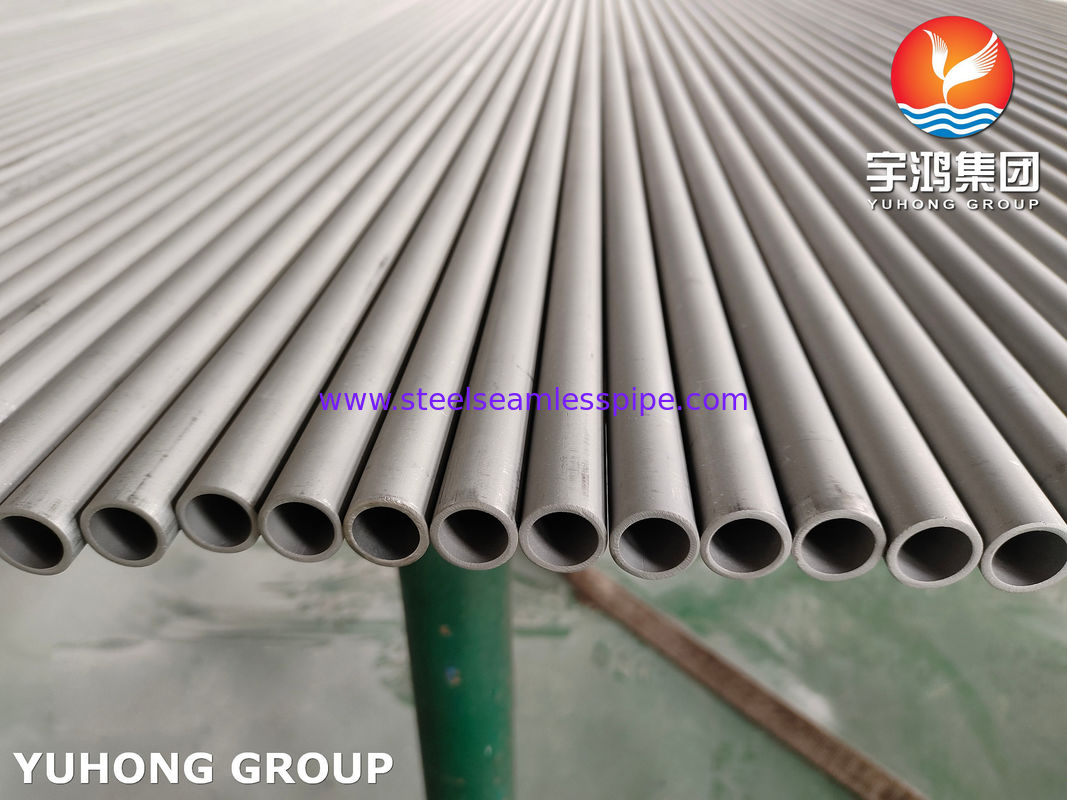

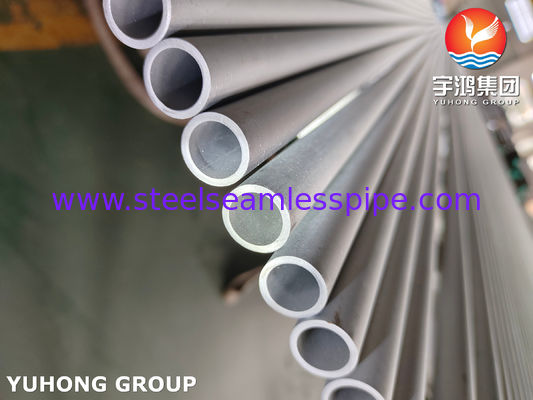

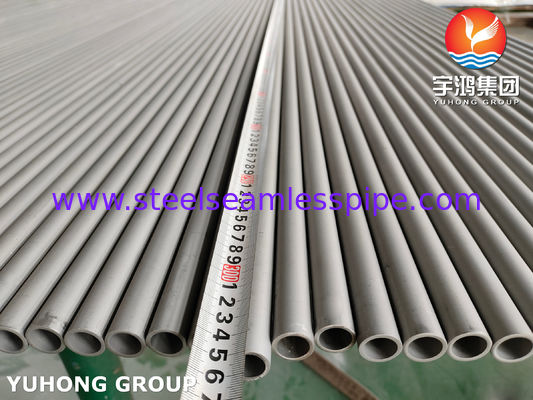

ASTM A268 TP410 Ferritic Stainless Steel Seamless Pipe for Heat Exchanger

ASTM A268 TP410 is a ferritic stainless steel grade designed for seamless pipes and tubes used in high-temperature and corrosive environments. It is widely applied in heat exchangers, condensers, and other critical applications where excellent corrosion resistance and mechanical properties are required.

Key Features:

Material Composition:
- TP410 is a martensitic stainless steel containing high chromium content, offering excellent resistance to oxidation and corrosion.
- Typical composition includes 11.5-13.5% Chromium (Cr) and 0.08-0.15% Carbon (C).
Corrosion Resistance:
- Good resistance to atmospheric corrosion, steam, and mild chemical environments.
- Suitable for applications in oxidizing and mildly corrosive conditions.
Mechanical Properties:
- High strength and good toughness after heat treatment.
- Excellent resistance to thermal fatigue and scaling.
Heat Resistance:
- Operates effectively in high-temperature environments.
- Ideal for heat exchanger systems where thermal stability is critical.

Characteristic of ASTM A268 TP410

Grade 410 stainless steel is a general-purpose martensitic stainless steel containing 11.5% chromium, which provides good corrosion resistance. However, the corrosion resistance of Grade 410 steel can be further improved through a number of processes including quenching, tempering and polishing. Quenching and tempering harden Grade 410 steels. They are typically used in applications involving mild corrosion, heat resistance and high strength.

The tubes shall have a hardness number that will not exceed the prescribed Brinell and Rockwell hardness values, TP410, TP430 and TP439 max Rockwell hardness 90HRB, Test report required certification conform to Specification A1016/A1016M.

Several mechanical tests shall be conducted, namely:

Tension test;

Flaring test (for seamless tubes);

Flange test (for welded tubes);

Hardness test;

Reverse flattening test;

Intergranular corrosion test; and

Hydrostatic or nondestructive electric test.

Chemical Composition of ASTM A268 TP410

C %	Mn %	P %	S %	Si %	Cr %
0.15 maximum	1.00 maximum	0.040 maximum	0.030 maximum	1.00 maximum	11.5-13.5

Mechanical Strength of ASTM A268 TP410

Tensile Stress, Mpa	Yield Stress, MPa	Elongation, %	Hardness, HB
415 minimum	205 minimum	20 minimum	207 maximum

ASTM A268 Stainless Steel Tubing Sizes Tolerance
Outside Diameter, In.[Mm]	OD Tolerance, In.[Mm]	Wall Thickness, %	Thin Wall Tubes
Up To1⁄2, [12.7], Excl	±0.005 [0.13]	±15
1⁄2 To 11⁄2 [12.7 To 38.1], Excl/Td>	±0.005 [0.13]	±10	Less Than 0.065 In. [1.6 Mm] Nominal
11⁄2 To 31⁄2 [38.1 To 88.9], Excl	±0.010 [0.25]	±10	Less Than 0.095 In. [2.4 Mm] Nominal
31⁄2 To 51⁄2 [88.9 To 139.7], Excl	±0.015 [0.38]	±10	Less Than 0.150 In. [3.8 Mm] Nominal
51⁄2 To 8 [139.7 To 203.2], Incl	±0.030 [0.76]	±10	Less Than 0.150 In. [3.8 Mm] Nominal

Applications:

Heat Exchangers: Used in oil refineries, power plants, and chemical industries for efficient heat transfer.
Condensers: Suitable for condensing steam or other fluids in industrial processes.
Boiler Tubes: Commonly used as boiler components in high-pressure environments.

Advantages of TP410 Ferritic Stainless Steel:
