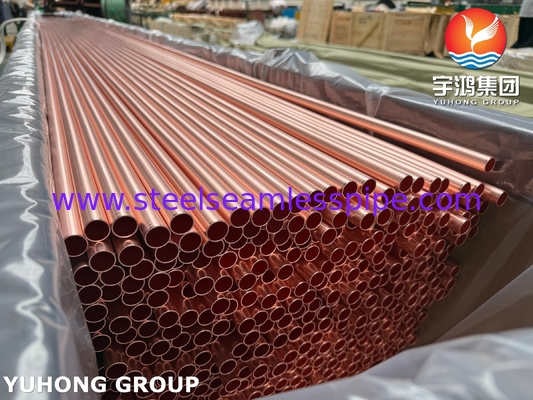

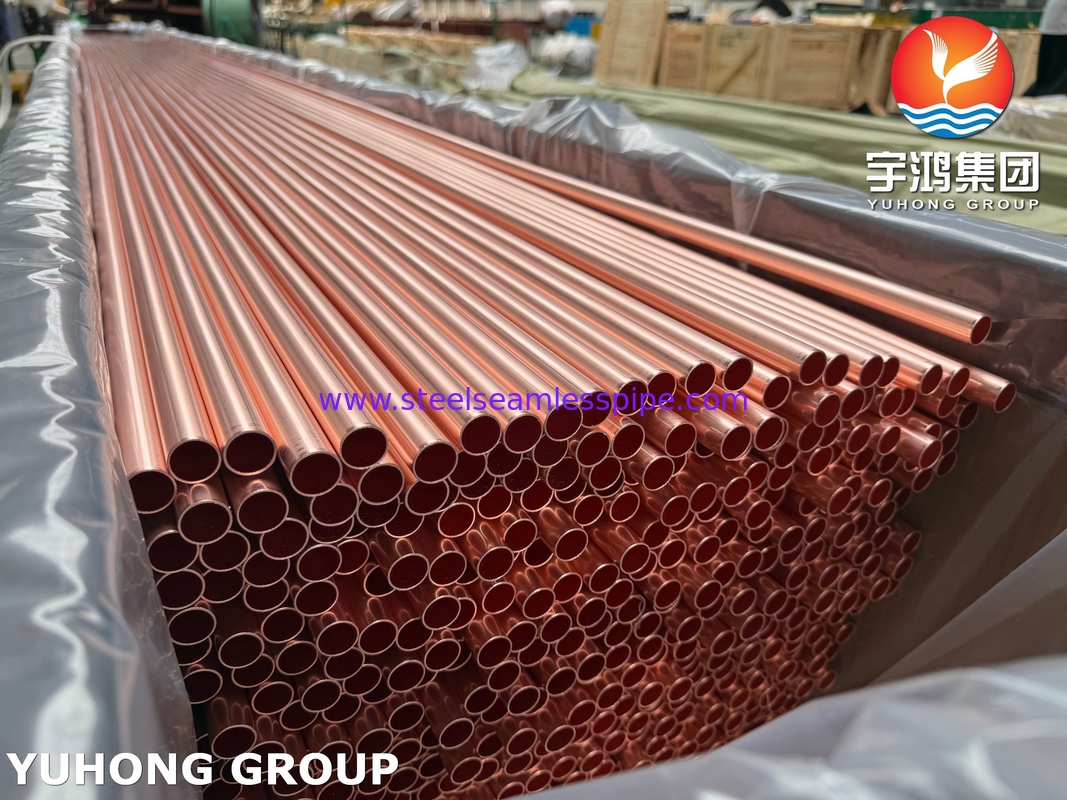

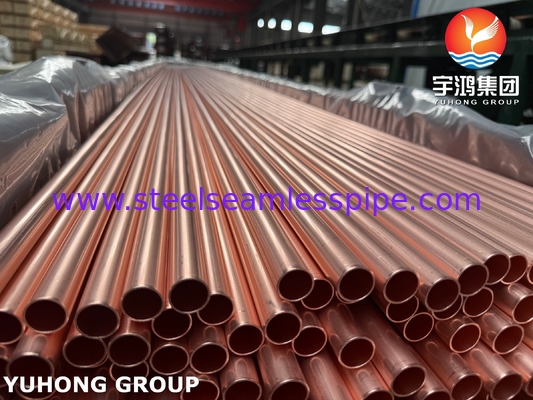

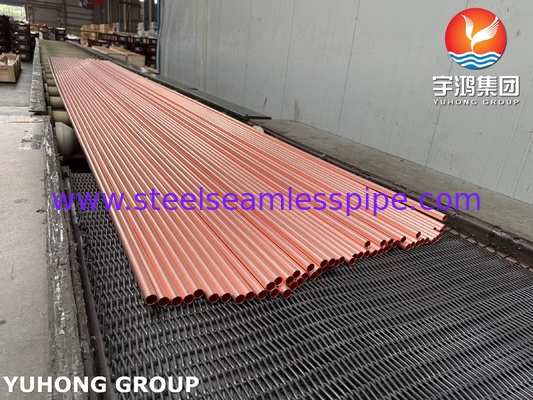

Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80

Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80

  • Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
  • Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
  • Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
  • Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80
Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: YUHONG
Sertifika: ABS, BV, ISO, ASTM, SGS
Model numarası: ASTM B111 C12200
Ödeme & teslimat koşulları:
Min sipariş miktarı: 100kg

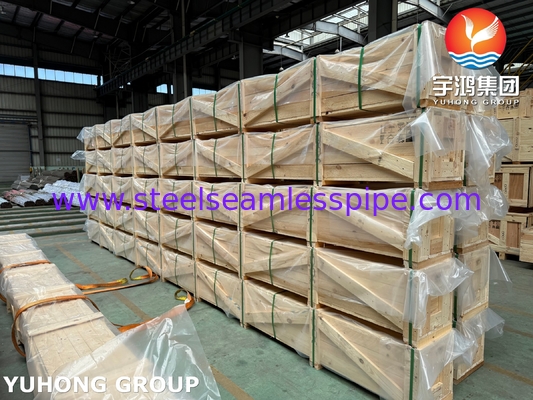

Ambalaj bilgileri: Kat-Tahta Sandık, Paket
Teslim süresi: 7 gün
Ödeme koşulları: L/C, T/T
İletişim
Detaylı ürün tanımı
Sınıf: C12200 Standart: ASTM B111,ASME SB111
test: ET, HT, Yassılaştırma Testi, Genleşme Testi, Cıva Nitrat Testi; Amonyak Buharı Testi; Kimyasal anali kod: H80, H55 ...
OD: 1/4"(6,35), 3/8"(9,52), 1/2" (12,7), 5/8"(15,88), 3/4" (19,05), 1"(25, WT: 0,5 mm ila 8 mm
Vurgulamak:

C12200 Seamless Condenser Tube

,

H55 Seamless Condenser Tube

,

99.9Cu Seamless Condenser Tube

Copper and Copper alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80



C12200 Tube also known as **DHP (Deoxidized High Phosphorus) Copper. This alloy is widely used in plumbing, HVAC (heating, ventilation, and air conditioning), and other industrial applications due to its excellent corrosion resistance, formability, and soldering/brazing properties.

Properties:
- High corrosion resistance(suitable for water and refrigerant systems)
- Excellent thermal & electrical conductivity
- Easy to braze, solder, and weld
- Good ductility & formability
- Non-toxic & safe for potable water systems(commonly used in plumbing)

Standards & Tempers:
- ASTM B42, B68, B75, B88, B251, B819(depending on tube type)
- Available in hard-drawn (rigid) or annealed (soft) tempers

Comparison with Other Copper Alloys:
- C10200 (Oxygen-Free Copper): Higher purity, used in electrical applications.
- C12000 (Phosphorus-Deoxidized Copper): Similar but with slightly different phosphorus content.
- C12200 (DHP Copper): Preferred for plumbing due to better brazing & corrosion resistance.




Chemical Composition of ASTM B111 C12200 Copper Tube



Copper (including silver)Phosphorus
> 99.90%0.015 – 0.040%



Copper or Copper Alloy UNS No.Description
C10100Oxygen-free electronic
C10200Oxygen-free without residual deoxidants
C10300Oxygen-free, extra low phosphorus
C10800Oxygen-free, low phosphorus
C12000Phosphorized, low residual phosphorus
C12200Phosphorized, high residual phosphorus
C14200Phosphorized, arsenical
C19200Phosphorized, 1 % iron
C23000Red Brass
C28000Muntz Metal
C44300Admiralty Metals, B, C, and D
C44400
C44500
C60800Aluminum Bronze
C61300
C61400Aluminum Bronze, D
C68700Aluminum Brass, B
C7040095-5 Copper-Nickel
C7060090-10 Copper-Nickel
C7062090-10 Copper-Nickel—Welding Grade
C7100080-20 Copper-Nickel
C7150070-30 Copper-Nickel
C7152070-30 Copper-Nickel—Welding Grade
C71640Copper-nickel-iron-manganese
C72200


Application of ASTM B111 C12200 Copper Tube:


- Plumbing pipes(water supply lines)
- HVAC refrigerant lines
- Hydraulic & pneumatic systems
- Medical gas tubing
- Heat exchangers & condensers

Copper And Copper Alloy Seamless Condenser Tube ASTM B111 C12200 99.9Cu H55 H80 0
