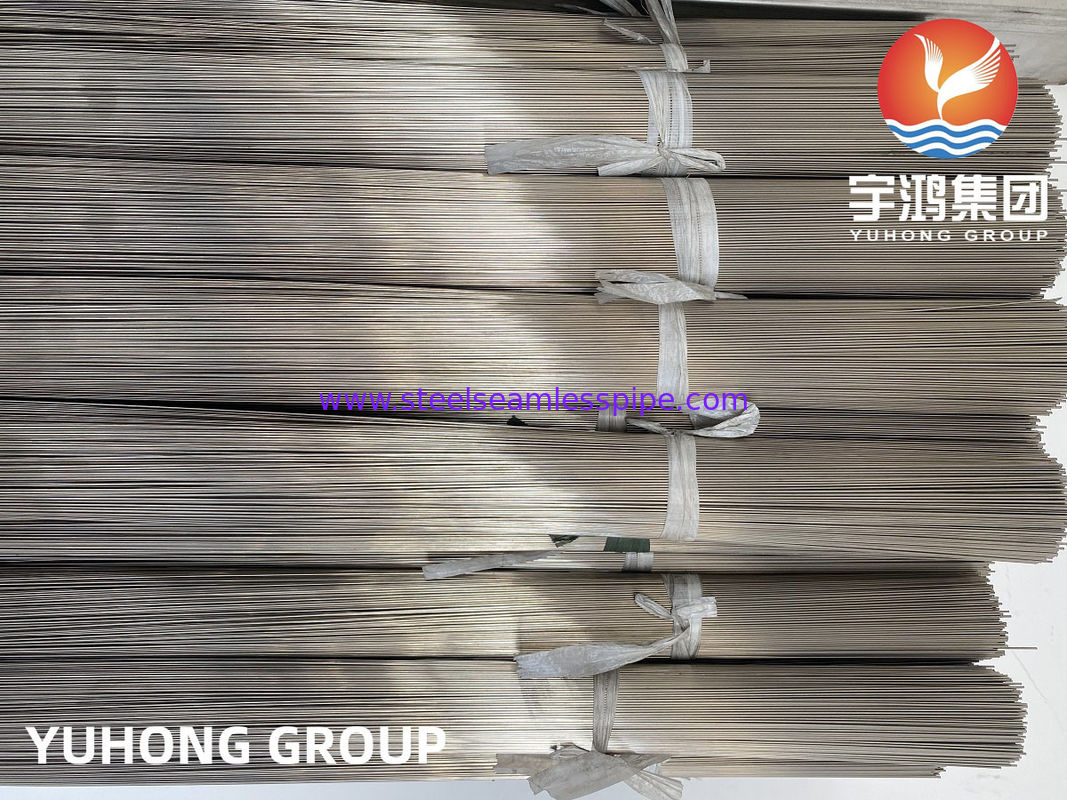

304/316/316L Staintess Steel Capillary Tube For Medical And Precision Instruments

304/316/316L Staintess Steel Capillary Tube For Medical And Precision Instruments

  • 304/316/316L Staintess Steel Capillary Tube For Medical And Precision Instruments
  • 304/316/316L Staintess Steel Capillary Tube For Medical And Precision Instruments
  • 304/316/316L Staintess Steel Capillary Tube For Medical And Precision Instruments
  • 304/316/316L Staintess Steel Capillary Tube For Medical And Precision Instruments
304/316/316L Staintess Steel Capillary Tube For Medical And Precision Instruments
Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: YUHONG
Sertifika: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008.
Model numarası: 304/116/116L kılcal tüp
Ödeme & teslimat koşulları:
Min sipariş miktarı: 100 kg
Fiyat: Anlaşılabilir
Ambalaj bilgileri: Kontrplak Kasa / Demir Kasa / Plastik Kapaklı Paket
Delivery Time: 5-80 Days
Ödeme koşulları: L/C, T/T
İletişim
Tüm ürünler
Paslanmaz Çelik Dikişsiz Boru (285)
Paslanmaz Çelik Dikişsiz Boru (273)
Dubleks Paslanmaz Çelik Boru (127)
Dubleks Paslanmaz Çelik Boru (28)
İğne tüpü (98)
Fin Tüpü (608)
Isı eşanjörü (15)
Eşanjör Borusu (424)
Sıcaklık Değiştiricisi tüp kümesi (37)
Eşanjör Boru Sayfası (115)
ısı değiştiricisi baffle (36)
Klima (7)
Basınçlı kap (4)
Paslanmaz Çelik Kaynaklı Boru (57)
Paslanmaz Çelik Dikişli Boru (112)
Nikel Alaşım Boru (259)
Nikel Alaşımlı Boru (75)
Bakır Alaşımlı Boru (219)
Alaşımlı Çelik Boru (177)
titanyum tüp (9)
Parlak Tavlı Boru (153)
Kazan Borusu (138)
çelik uydurma (791)
Çelik Flanş (577)
Diğerleri (386)
Kaplama parçaları (5)
Detaylı ürün tanımı
Spesifikasyon: ASTM A269 Malzeme: Boya çeliği
Teknik: Soğuk Çekme/Soğuk Haddeleme veya Her İkisi Paket: Standart Denizcilik Paketi
Shape: Round. Sertifika: ISO/CE/SGS
Vurgulamak:

316 Staintess Steel Capillary Tube

,

304 Staintess Steel Capillary Tube

,

316L Staintess Steel Capillary Tube

304/316/316L Staintess Steel Capillary Tube For Medical And Precision Instruments



Stainless steel capillary is an ultra-fine, thin-walled precision tube made of stainless steel. Its core features are extremely small inner diameter (usually between 0.1 mm and several millimeters) and strictly controlled dimensional tolerances.



This structure gives it excellent strength, excellent corrosion resistance and high and low temperature resistance, while enabling precise fluid control or as a protective sleeve.



It is widely used in medical devices (such as needles, catheters), analytical instruments (such as chromatographs), aerospace sensors, industrial instruments, and precision fluid systems that require high reliability and cleanliness.


In the medical field, stainless steel capillaries have become core components of high-end medical devices due to their excellent biocompatibility (commonly used 316L medical grade), precise size control (inner diameter can be less than 0.1mm) and sterile surface properties.






Chemical Composition





Chemical Composition 201 202 301 304 316 430
C ≤0.08 ≤0.06 ≤0.06 ≤0.06 ≤0.08 ≤0.12
S ≤0.02 ≤0.02 ≤0.03 ≤0.03 ≤0.03 ≤0.03
P ≤0.060 ≤0.060 ≤0.045 ≤0.035 ≤0.045 ≤0.04
Mn 8.5-10.5 8.5-10.5 ≤2.00 ≤2.00 ≤2.00 ≤1.00
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
Cr 14-15 14-16 16-18 17-20 16-18 16-18
Ni 0.8-1.2 4-6 4-7 8-12 12-16 ≤0.05













Mechanical Property








Mechanical

Property




 Material Item 201 202 304 316
Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <105 <100 <90 <90












Key Properties & Advantages



Corrosion Resistance: Ideal for harsh environments (chemical, marine, medical).

High Strength-to-Weight Ratio: Withstands pressure despite thin walls.

Cleanliness & Hygiene: Non-reactive surface suits medical/food applications.

Temperature Stability: Performs in extreme heat/cold (e.g., cryogenics).

Precision Flow Control: Used in fluid metering due to consistent bore size.





Applications


Industry Use Cases
Medical Hypodermic needles, endoscopes, surgical tools, fluid transfer systems.
Analytical Instruments Chromatography, spectroscopy, sample introduction lines.
Aerospace/Defense Fuel injection, hydraulic systems, pressure sensors.
Industrial Thermocouple sheaths, precision fluidics, pneumatic controls.









304/316/316L Staintess Steel Capillary Tube For Medical And Precision Instruments 0
