ASTM B861 Grade 2 UNS R50400 Titanium Alloy Seamless Pipe For Seawater Condenser

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	YUHONG
Sertifika:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008.
Model numarası:	ASTM B861 Sınıf 2

Ödeme & teslimat koşulları:

Min sipariş miktarı:	100 kg
Fiyat:	Anlaşılabilir
Ambalaj bilgileri:	Kontrplak Kasa / Demir Kasa / Plastik Kapaklı Paket
Teslim süresi:	5-80 Gün
Ödeme koşulları:	L/C, T/T

İletişim

Tüm ürünler

Paslanmaz Çelik Dikişsiz Boru (285)

Paslanmaz Çelik Dikişsiz Boru (273)

Dubleks Paslanmaz Çelik Boru (127)

Dubleks Paslanmaz Çelik Boru (28)

İğne tüpü (98)

Fin Tüpü (608)

Isı eşanjörü (15)

Eşanjör Borusu (424)

Sıcaklık Değiştiricisi tüp kümesi (37)

Eşanjör Boru Sayfası (115)

ısı değiştiricisi baffle (36)

Klima (7)

Basınçlı kap (4)

Paslanmaz Çelik Kaynaklı Boru (57)

Paslanmaz Çelik Dikişli Boru (112)

Nikel Alaşım Boru (259)

Nikel Alaşımlı Boru (75)

Bakır Alaşımlı Boru (219)

Alaşımlı Çelik Boru (177)

titanyum tüp (9)

Parlak Tavlı Boru (153)

Kazan Borusu (138)

çelik uydurma (791)

Çelik Flanş (577)

Diğerleri (386)

Kaplama parçaları (5)

Detaylı ürün tanımı

Spesifikasyon:	ASTM B861	Standart:	ASTM,GB,DIN
Malzeme:	Sınıf 2 UNS R50400	Şekli:	Yuvarlak.
Sertifika:	ISO/CE/SGS	Paket:	Standart Denizcilik Paketi
Vurgulamak:	UNS R50400 Titanium Alloy Seamless Pipe , ASTM B861 Seamless Pipe , ASTM B861 Grade 2 Seamless Pipe

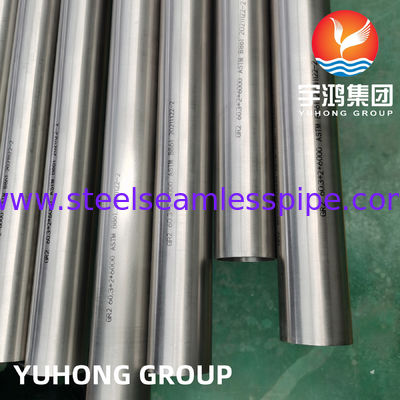

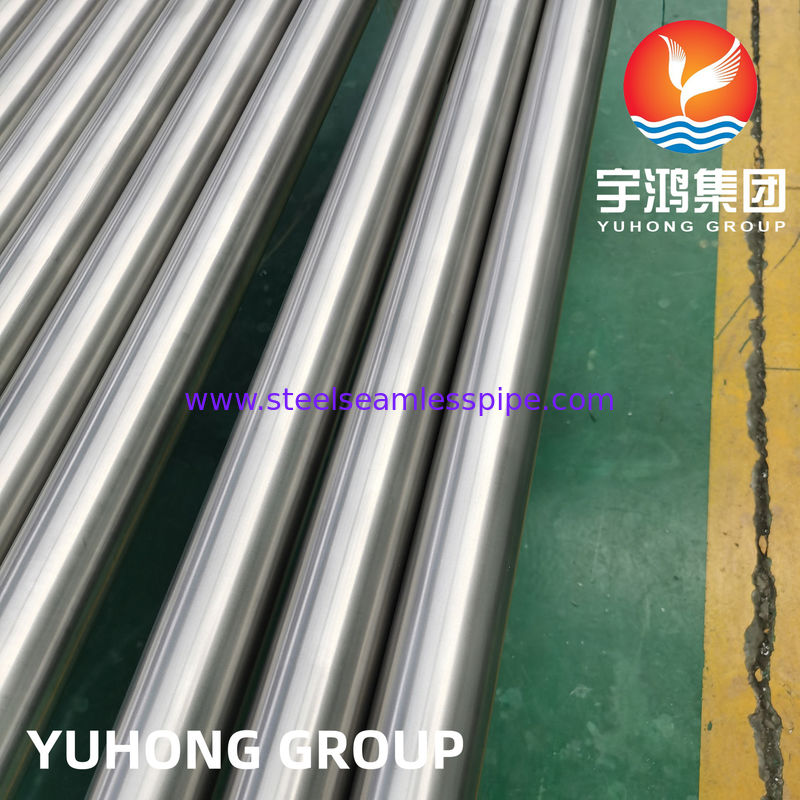

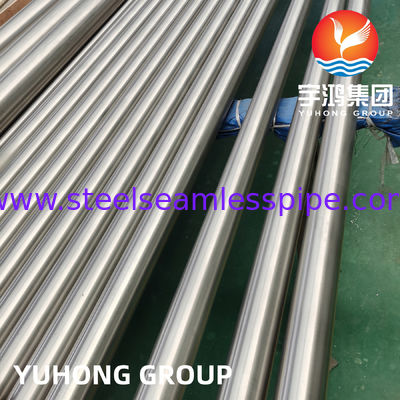

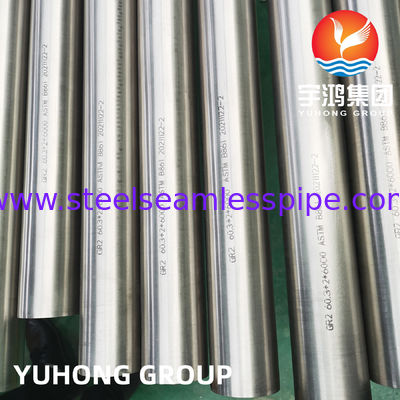

ASTM B861 Grade 2 UNS R50400 Titanium Alloy Seamless Pipe

ASTM B861 Grade 2 titanium alloy seamless pipe is made of industrial pure titanium, which combines excellent corrosion resistance, medium strength and good ductility. Its seamless structure is achieved by extrusion or rolling process, without the risk of weld defects, and is suitable for high pressure and harsh environments.

This material has excellent resistance to seawater, chlorides, various acids and alkalis, and is low in density (high strength to weight ratio), non-magnetic and biocompatible.

Typical applications include chemical pipelines, offshore platform systems, seawater desalination equipment and heat exchangers. It is the preferred material for corrosive conditions requiring long life and high reliability, but attention should be paid to the high cost and galvanic corrosion protection when connected with other metals.

Chemical Composition of ASTM B861 Grade 2 Titanium Seamless Pipes

Element	Chemical Composition %
Element	Grade 1	Grade 2	Grade 3	Grade 5	Grade 7	Grade 9	Grade 11	Grade 12	Grade 23
Nitrogen, max	0.03	0.03	0.05	0.05	0.03	0.03	0.03	0.03	0.03
Carbon, max	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08	0.08
Hydrogen, max	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.015	0.0125
Iron, max	0.20	0.30	0.30	0.40	0.30	0.25	0.20	0.30	0.25
Oxygen, max	0.18	0.25	0.35	0.20	0.25	0.15	0.18	0.25	0.13
Aluminum	…	…	…	5.5-6.75	…	2.5-3.5	…	…	5.5-6.5
Vanadium	…	…	…	3.5-4.5	…	2.0-3.0	…	…	3.5-4.5
Tin	…	…	…	…	…	…	…	…	…
Ruthenium	…	…	…	…	…	…	…	…	…
Palladium	…	…	…	…	0.12-0.25	…	0.12-0.25	…	…
Molybdenum	…	…	…	…	…	…	…	0.2-0.4	…
Chromium	…	…	…	…	…	…	…	…	…
Nickel	…	…	…	…	…	…	…	0.6-0.9	…
Niobium	…	…	…	…	…	…	…	…	…
Ziconium	…	…	…	…	…	…	…	…	…
Silicon	…	…	…	…	…	…	…	…	…
Residuals, max each	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1	0.1
Residuals, max total	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
Titanium	balance	balance	balance	balance	balance	balance	balance	balance	balance

ASTM B861 Grade 2 Tensile Strength of Titanium Seamless Pipes

Grade	Tensile Strength, min		Yield Strength (0.2% Offset)				Elongation 2 in. or 50 mm
			min		max		Elongation 2 in. or 50 mm
	Ksi	(Mpa)	Ksi	(Mpa)	Ksi	(Mpa)	gage length min %
Grade 1	35	(240)	25	(170)	45	(310)	24
Grade 2	50	(345)	40	(275)	65	(450)	20
Grade 3	65	(450)	55	(380)	80	(550)	18
Grade 5	130	(895)	120	(828)	…	…	10
Grade 7	50	(345)	40	(275)	65	(450)	20
Grade 9	90	(620)	70	(483)	45	…	15
Grade 11	35	(240)	25	(170)	…	(310)	24
Grade 12	70	(483)	50	(345)	…	…	18
Grade 23	120	(828)	110	(759)	…	…	10

Application

Chemical and petrochemical

Process pipelines, reactors, and heat exchanger pipelines for transporting highly corrosive media (such as chloride ions, acidic solutions, and organic acids).
Replace stainless steel in high-temperature and high-chlorine environments where pitting/stress corrosion is prone to occur, significantly extending the life of the equipment.

Marine engineering and ships

Seawater cooling system pipelines, submarine oil and gas pipelines, and drilling platform high-pressure manifolds.
Resist seawater corrosion and biological attachment, reduce maintenance costs, and are suitable for occasions with long service cycles.

Energy and environmental protection

Evaporator tubes and brine heater pipes in seawater desalination devices
Flue gas desulfurization (FGD) system spray pipes, chimney linings

High-end industrial systems

Aviation hydraulic pipelines, aerospace fuel pipelines
Pharmaceutical/bioengineering clean pipelines
