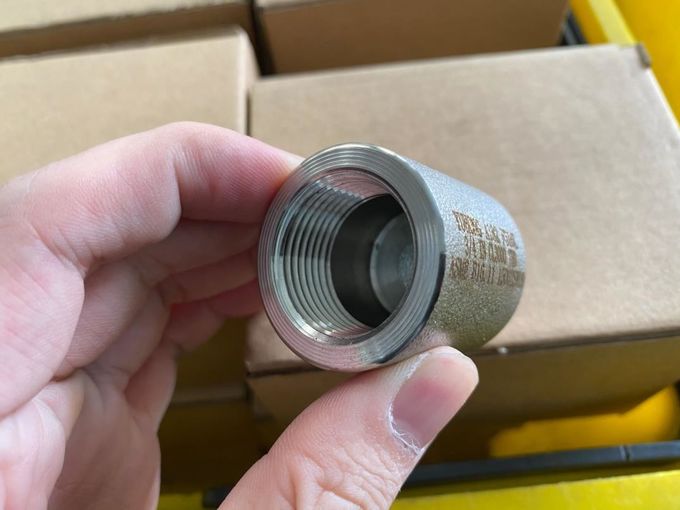

Paslanmaz Çelik Dövme Bağlantı Parçaları A182 F316L 3/4 IN CL3000 THD ASME B16.11

Notlar:

Paslanmaz çelik
ASTM / ASME SA 312 GR.TP304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
ASTM / ASME SA 358 CL 1 & CL 3gr.304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316H, 321, 321H, 47 .


Dubleks Çelik

ASTM / ASME SA 790 UNS NOS 31803, S 32205, S 32550, S 32750, S 32760.


Karbon çelik

ASTM / ASME A 53gr.A & B, ASTM A 106 GR.A, B & C. API 5L GR.B, API 5L X 42, X 46, X 52, X 60, X 65 ve X 70.
ASTM / ASME A 691 GRA, B ve C


Alaşımlı çelik
ASTM / ASME A 335 GRÖ1,Ö5,Ö9,Ö11,Ö12,Ö22,Ö23,Ö91
ASTM / ASME A 691 GR1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91


Nikel alaşımı

ASTM / ASME SB 163UNS 2200 ( NİKEL 200 )
ASTM / ASME SB 163UNS 2201 (NİKEL 201 )
ASTM / ASME SB 163 / 165UNS 4400 (MONEL 400 )
ASTM / ASME SB 464UNS 8020 ( ALAŞIM 20 / 20 CB 3 )
ASTM / ASME SB 704/705UNS 8825 INCONEL (825)
ASTM / ASME SB 167 / 517UNS 6600 (INCONEL 600 )
ASTM / ASME SB 167UNS 6601 (INCONEL 601)
ASTM / ASME SB 704 /705UNS 6625 (INCONEL 625)
ASTM / ASME SB 619/622/626UNS 10276 ( HASTELLOY C 276 )


Bakır alaşımı

ASTM / ASME SB 111 UNS NO.C 10100, 10200, 10300, 10800, 12000, 12200, 70600, 71500.
ASTM / ASME SB 466 UNS NO.C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30)
Boyut:1/8" NB İLE 4" NB.(SOKET KAYNAKLI VE DİŞLİ)
Sınıf: 150#, 300#, 600#, 900#, 1500#, 2000#, 3000#, 6000#, 9000#

ÜrünlerBirlik

Ürün Resimleri ve Çizimler

Birlik (GB)   Birlik (TH)

Boyutsal Veri

1/8" ila 3" sınıf 3000 ve 1/2" ila 2" sınıf 6000

Sınıf 3000 　 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3 A 1 11/16 1 11/16 1 27/32 2 2 5/16 2 7/16 2 7/8 3 3 1/2 4 1/2 4 7/16 B 1 31/64 1 31/64 1 11/16 1 15/16 2 3/8 2 25/32 3 23/64 3 23/32 4 27/64 5 15/64 6 5/32 C 53/64 53/64 1 1 3/16 1 15/32 1 25/32 2 7/32 2 35/64 3 1/16 3 9/16 4 9/32 D 25/32 25/32 31/32 1 3/32 1 5/32 1 3/8 1 45/64 1 7/8 2 1/16 2 3/8 2 7/16 E 7/16 7/16 7/16 7/16 9/16 9/16 9/16 9/16 11/16 7/8 1 F 0,420 0,555 0,690 0,855 1.065 1.330 1.675 1.915 2.406 2.906 3.535   0,430 0,565 0,700 0,865 1.075 1.340 1.685 1.925 2.416 2.921 3.550 　 Sınıf 6000 　 1/8 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 　 A 1 11/15 1 27/32 2 2 5/16 2 7/16 2 7/8 3 3 1/2 4 1/8 B 1 31/64 1 11/16 1 15/16 2 3/8 2 25/32 3 23/64 3 23/32 4 27/64 5 15/64 C 53/64 1 1 3/16 1 15/32 1 25/32 2 7/32 2 35/64 3 1/16 3 9/16 D 25/32 31/32 1 3/32 1 5/32 1 3/8 1 45/64 1 7/8 2 1/16 2 3/8 E 7/16 7/16 7/16 9/16 9/16 9/16 9/16 11/16 7/8 F 0,420 0,555 0,690 0,855 1.065 1.330 1.675 1.915 2.406   0,430 0,565 0,700 0,865 1.075 1.340 1.685 1.925 2.416
